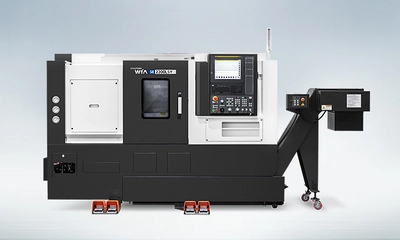

NEW HYUNDAI WIA SE2200LSY

Hyundai WIA SE2200LSY
Y-axis CNC Turning Center specialized in small-parts
30° slanted one-piece bed structure with high rigidity
Stabilized unit structure to minimize thermal displacement
Integrated processing through synchronized control of Main/Sub spindle

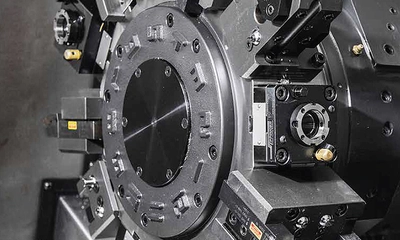

Multi-tasking operation with wedge type Y-axis BMT45P turret
SErgonomic design for convenient access to chuck and tool
Latest FANUC 0i PLUS Controller (15” touch screen)

Basic Features
CNC Lathe with Y-axis, which can process ALL through single setting

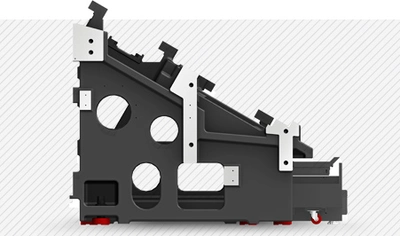

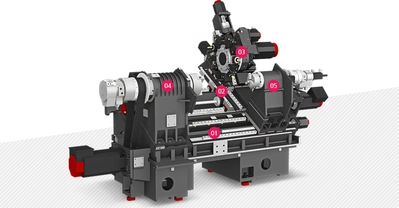

1. Optimal Structural Analysis
Structural analysis was applied to the design of the machine to increase the tool post body and reduce the machine’s height so as to maintain the bed’s dynamic rigidity even during heavy-duty cutting.

In addition, the SE-SY Series bed slope is pitched at 30 degrees to ensure more stable machining.

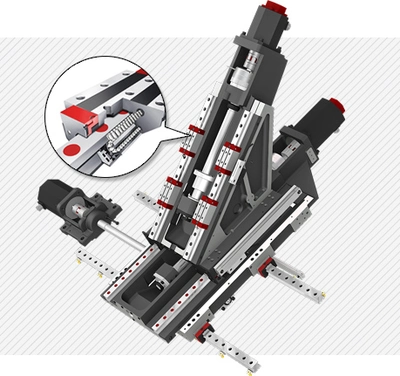

2. High-speed Roller LM Guideway
Linear roller guideways are applied in SE-SY Series to reduce non-cutting time and bring high-rigidity.

In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews.

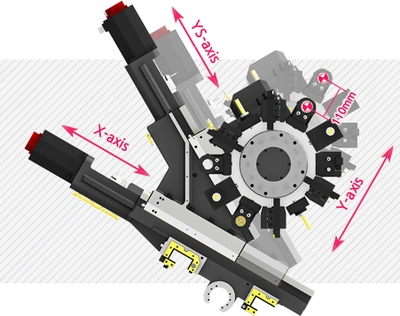

3. Wedge Type Y-axis Structure
The SE-SY Series is designed with a wedge type Y-axis that is transferred by the simultaneous operation of the Ys-axis and the X-axis. In addtion, excellent rigidity makes possible to perform superb quality when machining a heavy-duty cutting.
