NEW HYUNDAI LV450RM/LM
Overview

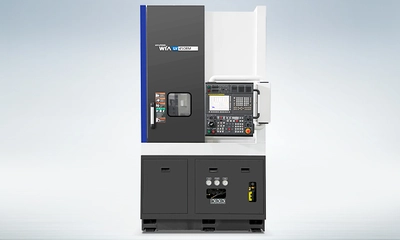

Hyundai Wia LV450RM/LM
Features
Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
High/Low chucking to minimize material deformation is a standard feature
Designed for easy addition of automation and other peripheral accessories
This phrase doesn’t make any sense even in Korean. It needs to be deleted.
Minimal footprint for use of less shop floor space and ease of transportation
Available in “Right” and “Left” hand configurations to minimize pitch between spindle center lines for ease of operation and the addition of automation
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 18.3 in
Max Turning Length: 18.3 in
Chuck Size: 12″ in
Driving Method: Belt
Spindle RPM: 3,000 r/min
Spindle Output (max/cont.): 30/25 hp
Spindle Torque (max/cont.): 538/453 ft.lbs
Travel(X/Z): 12.2/19.5 in
Rapid Travel(X/Z): 787/945 in/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size (ID/OD): 1″ / 2″ in
Milling Tool Speed: 4,000 r/min
