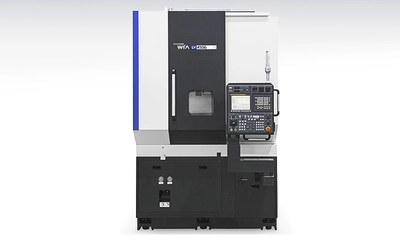

NEW HYUNDAI WIA LV450G
Overview
Features
Shortens tool replacement time with a gang-type work stand
Max. turning diameter (Φ465mm) and max. turning length
Rapid federate for productivity improvement (shaft 24m/min.)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 18.3 in
Max Turning Length: 19.5 in
Chuck Size: 12″ in
Driving Method: Belt
Spindle RPM: 3,000 r/min
Spindle Output (max/cont.): 30/25 hp
Spindle Torque (max/cont.): 538/453 ft.lbs
Travel(X/Z): 19.7/19.5 in
Rapid Travel(X/Z): 945/945 in/min
Slide Type: LM
No. of Tools: 3 EA
Tool Size (ID/OD): 1″ / 2″ in
