NEW HYUNDAI WIA LV1100RM
Overview

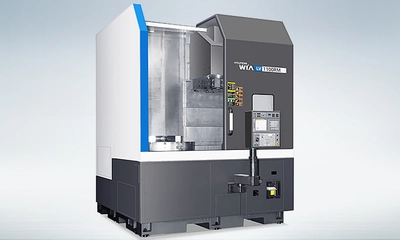

Hyundai Wia LV1100RM
Features
Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)
2-step chuck pressure mechanism adopted to minimize material deformation
Various peripheral equipment can be used for rational machining
All-in-one machine structure incorporating power and oil supply functions in one body
Space design taking into account smooth ship treatment
“Right” and “Left” structure for the formation of rational automation
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 45.67 in
Max Turning Length: 39.37 in
Chuck Size: 32″ in
Driving Method: Belt
Spindle RPM: 800 r/min
Spindle Output (max/cont.): 80/60hp hp
Spindle Torque (max/cont.): 4787/3916 ft.lbs ft.lbs
Travel(X/Z): 620/1,000 in
Rapid Travel(X/Z): 945/945 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1.25″ / 3″ in
Milling Tool Speed: 3,000 r/min
