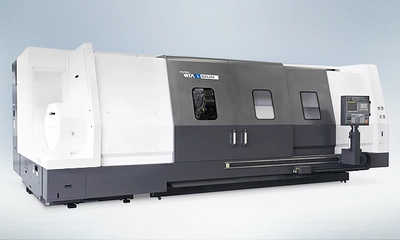

NEW HYUNDAI WIA L800LMA
Overview
Features
Sturdiness secured through the adoption of an all Axis box guide
All-in-one type structure with direct link for high accuracy and sturdiness
Based on double anchor method for high accuracy pretension
Minimized heat deformation in the main spindle
Gear box used for the main spindle (L600/700 Series : 3 step/ L800 Series : 2 step)
Big-bore main spindle with a maximum through diameter of Ø375 (Ø14.7″) (L800D)
Structural design featuring the major axis capable of processing a maximum length of 3,250mm (127.9″) (Long Bed Type)
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 36.22 in
Max Turning Length: 128 in
Chuck Size: 32″ in
Driving Method: GEAR
Spindle RPM: 700 r/min
Spindle Output (max/cont.): 60/50 hp
Spindle Torque (max/cont.): 5196 / 4274 ft.lbs
Travel(X/Z): 19.7/129 in
Rapid Travel(X/Z): 472/472 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1.25″ / 3″ in
Milling Tool Speed: 3,000 r/min
