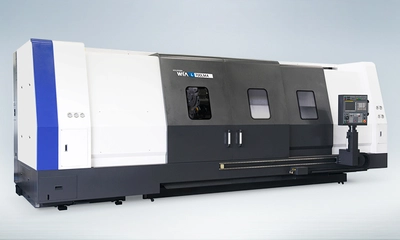

NEW HYUNDAI WIA L700MA
Overview
Features

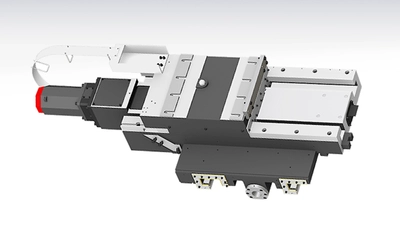

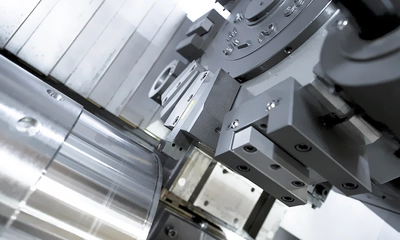

Box guideways on all axis ensuring high rigidity in heavy cutting conditions

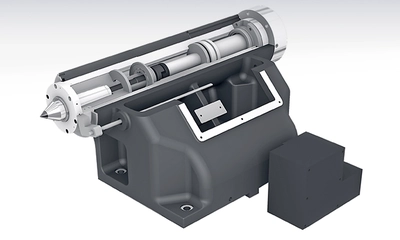

One-piece bed structure for high accuracy and sturdiness
Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy

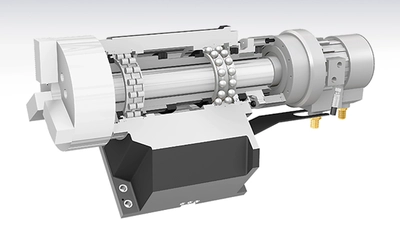

Minimized spindle thermal distortion

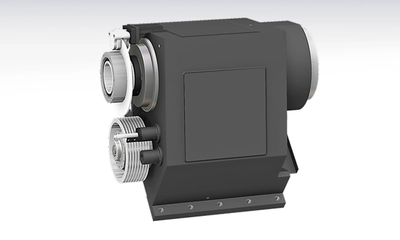

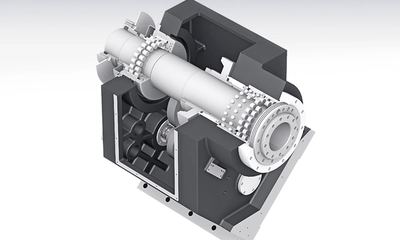

Gear box used for the main spindle (L600/700 Series : 3 step/ L800 Series : 2 step)
Big-bore main spindle with a maximum through diameter of 375 (14.7″) (L800D)
Optional Long Bed design capable of processing a maximum length of 3,250mm (127.9″)
Specifications
Specifications are subject to change without notice for quality improvement.
Specs
Max Turning Dia: 36.22″ in
Max Turning Length: 65″ in
Chuck Size: 24″ inch
Driving Method: GEAR
Spindle RPM: 1,500 r/min
Spindle Output (max/cont.): 60/50 hp
Spindle Torque (max/cont.): 5147 / 4204 ft.lbs
Travel(X/Z): 19.7/66 in
Rapid Travel(X/Z): 472 / 630 in/min
Slide Type: BOX

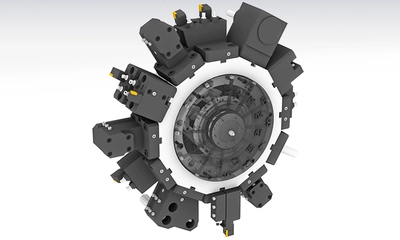

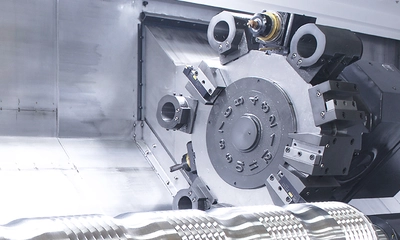

No. of Tools: 12 EA
Tool Size (ID/OD): 1.25″ / 3″ in

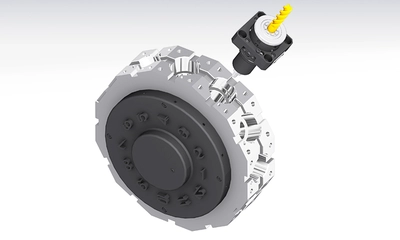

Milling Tool Speed: 3,000 r/min
