NEW HYUNDAI WIA L400LMC
Overview

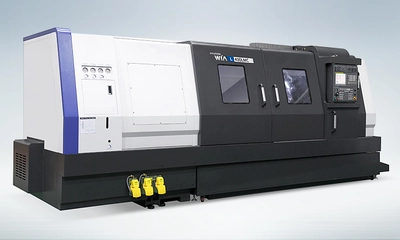

Hyundai Wia L400LMC
Features
Sturdiness secured through the adoption of an all axis box guide
All-in-one type structure with direct link for high accuracy and sturdiness
Based on double anchor method for high accuracy pretension
Minimized heat deformation in the main spindle
Two-Step gear box drives the main spindle across the L400 range. (L400MA : Belt)
Big Bore Spindle (L400C Series)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 22″ inch
Max Turning Length: 82.7″ inch
Chuck Size: 15″ inch
Driving Method: GEAR
Spindle RPM: 2,000 r/min
Spindle Output (max/cont.): 50/40 hp
Spindle Torque (max/cont.): 2266/1837 ft.lbs
Travel(X/Z): 12.6″/86.6″ inch
Rapid Travel(X/Z): 787/787 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1.25″ / 2.5″ inch
Milling Tool Speed: 4,000 r/min
