NEW HYUNDAI WIA L400LC
Overview

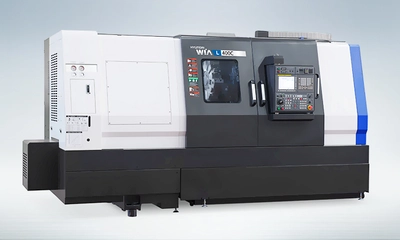

Hyundai Wia L400LC
Features
Box guideways on all axis ensuring high rigidity in heavy cutting conditions
All-in-one type structure with direct link for high accuracy and sturdiness
Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
Minimized spindle thermal distortion
Two-Step gear box drives the main spindle across the L400 series. (L400MA : Belt)
Big Bore Spindle (L400C Series)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 14″ inch
Max Turning Length: 83.5″ inch
Chuck Size: 15″ inch
Driving Method: GEAR
Spindle RPM: 2,000 r/min
Spindle Output (max/cont.): 50/40 hp
Spindle Torque (max/cont.): 2267/1837 ft.lbs
Travel(X/Z): 12.6″ /87.6″ inch
Rapid Travel(X/Z): 787/787 in/min
Slide Type: BOX
No. of Tools (ID/OD): 10 EA
Tool Size: 1.25″ / 2″ inch
