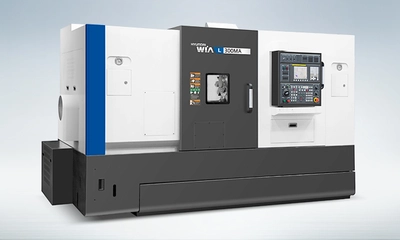

NEW HYUNDAI WIA L300MA
Overview
Features
Box guideways on all axis ensuring high rigidity in heavy cutting conditions
Highly Accurate direct drive spindle design and highly sturdy all-in-one structure
Pretensioned double-anchored ballscrew for superior positioning and repeatability accuracy
Minimized spindle thermal distortion
Gearless type main spindle models are all equipped with a mill turret.
Integrated process realized through use of optional 8″ sub spindle
Big Bore Spindle (L300C Series)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 16.1″ inch
Max Turning Length: 26.8″ inch
Chuck Size: 10″ inch
Driving Method: Belt
Spindle RPM: 3,500 r/min
Spindle Output (max/cont.): 30/25 hp
Spindle Torque (max/cont.): 363.8 / 305.8 ft.lb
Travel(X/Z): 11.4″ /29.5″ inch
Rapid Travel(X/Z): 787″ / 945″ in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1″ / 2″ inch
Milling Tool Speed: 4,000 r/min
