NEW HYUNDAI WIA L3000SY
Overview

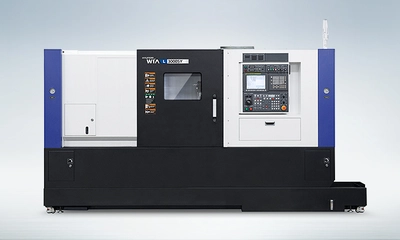

Hyundai Wia L3000SY
Features
Cycle time reducing structure for maximum productivity
Multi-tasking operation with wedge type Y-axis BMT65P turret
Integrated processing through synchronized control of Main/Sub spindle (“S” Type)
High performance heavy duty cutting enabled with box guideways
Improved maintenance through locating lubrication mechanisms on the front of machine
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 16.5″ inch
Max Turning Length: 30″ inch
Chuck Size: Main 12″
Sub 6″ inch
Driving Method: Built in
Spindle RPM: 3,000 r/min
Spindle Output (max/cont.): 50/35 hp
Spindle Torque (max/cont.): 740/930 ft.lbs
Travel(X/Y/Z/ZB): 10.4″/4.7″/32.7″/32.7″ inch
Rapid Travel(X/Y/Z/ZB): 1181/394/1181/1181 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1″ / 2″ inch
Milling Tool Speed: 5,000 r/min
