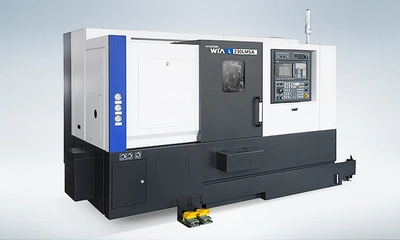

NEW HYUNDAI WIA L230MC
Overview
Features
Shortened cycle time to improve productivity.
Adequate machine structure to produce various products.
Adopted angular ball bearing to maintain high-rigidity and low heat absorption.
Strengthened Equipment Sturdiness through Structural Analysis
Applied BMT turret to cut heavy-duty products (Mill Turret Attachment Machine)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 12.2 in
Max Turning Length: 13.5 in
Chuck Size: 10″ in
Driving Method: Belt
Spindle RPM: 3,000 r/min
Spindle Output (max/cont.): 25 / 20 hp
Spindle Torque (max/cont.): 340 /275 ft.lb
Travel(X/Z): 8.7/17.3 in
Rapid Travel(X/Z): 1417/1417 in/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size (ID/OD): 1″ / 1.5″ in
Milling Tool Speed: 5,000 r/min
