NEW HYUNDAI WIA L230LMSA
Overview

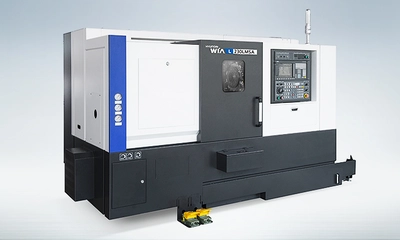

Hyundai Wia L230LMSA
Features
Shortened cycle time to improve productivity.
Adequate machine structure to produce various products.
Adopted angular ball bearing to maintain high-rigidity and low heat absortion.
Strengthened Equipment Sturdiness through Structural Analysis
6″ sub chuck expands cutting capacity (Sub Spindle Attachment Machine)
Applied BMT turret to cut heavy-duty products (Mill Turret Attachment Machine)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 12.2 inch
Max Turning Length: 20.5 inch
Chuck Size: Main 8″
Sub 6″ inch
Driving Method: Belt
Spindle RPM: 4,000 r/min
Spindle Output (Max/Cont.): 20 / 15 hp
Spindle Torque (Max/Cont.): 211/155 ft.lb
Travel(X/Z): 220/560/590 inch
Rapid Travel(X/Z): 1417 / 1417 / 1181 in/min
Slide Type: LM
No. of Tools: 12 EA
Tool Size (ID /OD ): 1″ / 1.5″ inch
Milling Tool Speed: 5,000 r/min
