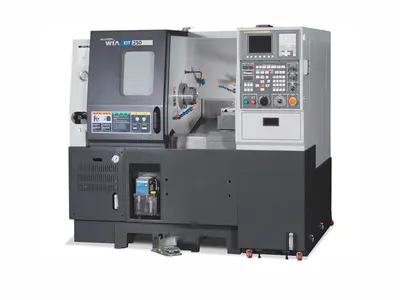

NEW HYUNDAI WIA KIT250
Overview
KIT SERIES
Automation/Process Integration, Easy to Operate
Gang Type Lathes
Variety Accessories, Robot System Application (ex: KN Robot)
Variety Optional figures are available, Auto Loader/Bar Feeder/ Parts Catcher etc.

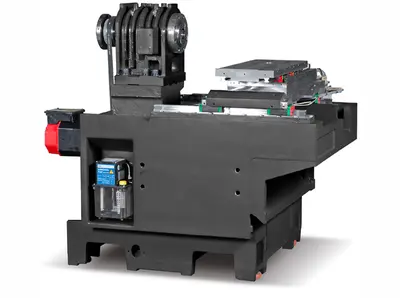

Slant bed design gives better access to tool holder, and chuck. Also, this design is more efficient to remove chips.
Locate chip box at the front or sides
For operator’s convenient, multi purpose tool box and used lubrication collect box are equipped
Specs
Description: KIT250 Unit
Swing Over the Bed: 12.6″ in
Max. Turning Dia.: 6.3″ in
Max. Turning Length: 5.9″ in
Bar Capacity: 1.3″ in
Chuck Size: 5.3″ in
Spindle Bore: 1.65″ in
Spindle Speed (rpm): 50~7,000 r/min
Motor (Max/Cont.): 5.5/3.7 (7.4/5) kW(HP)
Torque (Max/Cont.): 35.4/23.9 ft.lb
Spindle Type: BELT
Spindle Nose: FLAT ø110
Travel (X/Z): 9.8″/7.9″ in
Rapid Travel (X/Z): 945/1181 in/min

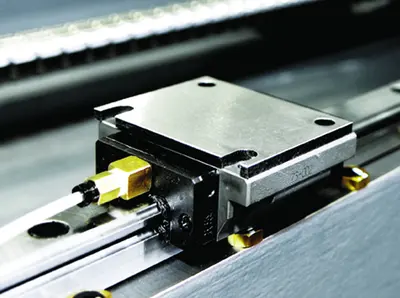

Slide Type: LM GUIDE
No. of Tool: 4 EA
Tool Size: 1″ OD in
ID in: 1″
Coolant Tank: 95 (25.1) ℓ(gel)
Lubricating Tank: 1.8 (0.48) ℓ(gel)
Electric Power Supply: 20 kVA
Thickness of Power Cable: OVER 16 Sq
Voltage: 220/60 (200/50) V/Hz
Floor Space (L×W): 66″×66″ in
in: 66.1″×66.8″
Height: 61.8″ in
Weight: 1,900 (4,189) kg(lb)
Controller: HYUNDAI WIA FANUC i Series
