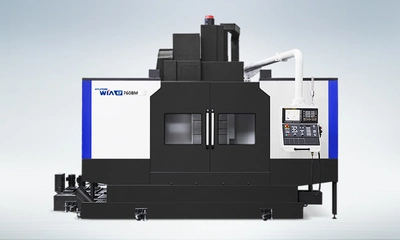

NEW HYUNDAI WIA KF760BM
Overview
Features
Built-in spindle for a high-quality mold processing
Excellent vibration absorption through box guideways in all axes
Decrease of travel load with semi-air-floating slide way
Prevent vibration fundamentally by seperated column and magazine
Mold pacakage for precise machining (option)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 70.87″ × 27.56 in
Max. Load Capacity: 2,000 kg
Spindle Driving Method: Built in
Spindle Taper: BBT50
Spindle RPM: 12,000 r/min
Spindle Power: 40/33.5 hp
Spindle Torque: 309.78/175.5 ft.lbs
Travel(X/Y/Z): 61.02″ / 29.92″ / 28.35″ in
Rapid Feed Rate(X/Y/Z): 590.5/590.5/472.44 in/min
Slide Type: BOX
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 8.5 sec
