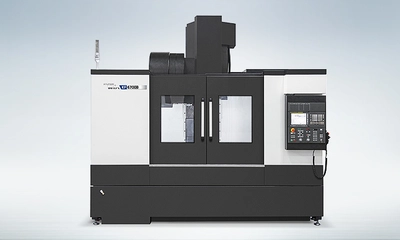

NEW HYUNDAI WIA KF6700B/50
Overview
Features
Box guideways for exceptional feeding during heavy duty cutting
High-powered, high-torque main spindle for superb heavy duty cutting
Main spindle with gear drive for high-power and high torque (BT50 Option)
Latest Servo ATC for highly efficient tool exchanging
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 59″ × 26.38″ in
Max. Load Capacity: 1,300 kg
Spindle Driving Method: Gear
Spindle Taper: BBT50
Spindle RPM: 8,000 12,000
Spindle Power: 20/15 25/15
Spindle Torque: 211/105.5 87/51.63
Travel(X/Y/Z): 51.18″ /26.38″ /25″ in
Rapid Feed Rate(X/Y/Z): 1181/1181/945 in/min
Slide Type: BOX
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 5.5 sec
