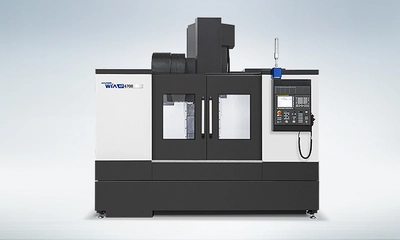

NEW HYUNDAI WIA KF6700
Overview
Features
Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K, 20K)
Increases strength through structural analysis
Expands machining domain with y-axis 670mm design
Mould packages for optimum mould manufacturing (20K built-in)
Applied the latest HEIDENHAIN TNC 620 controller
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 59×26.37 in
Max. Load Capacity: 1,300 kg
Spindle Driving Method: Direct
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 20/15 hp
Spindle Torque: 211/105.5 ft.lbs
Travel(X/Y/Z): 51.18/26/25 in
Rapid Feed Rate(X/Y/Z): 1417/1417/1181 in/min
Slide Type: LM
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.2 sec
