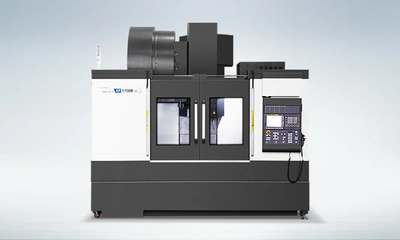

NEW HYUNDAI WIA KF5700B
Overview
Features
Box guideways for exceptional feeding during heavy duty cutting
High-powered, high-torque main spindle for superb heavy duty cutting
Main spindle with gear drive for high-power and high torque (BT50 Option)
Latest Servo ATC for highly efficient tool exchanging
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 51.18×22.44 in
Max. Load Capacity: 1,000 kg
Spindle Driving Method: Direct
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 20/15 hp
Spindle Torque: 211/105.5 ft.lbs
Travel(X/Y/Z): 43.3/22.44/20.47 in
Rapid Feed Rate(X/Y/Z): 1181/1181/945 in/min
Slide Type: BOX
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.5 sec
