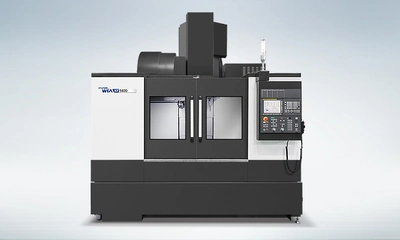

NEW HYUNDAI WIA KF5600
Overview
Hyundai Wia KF5600
Features

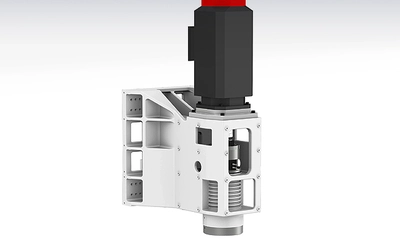

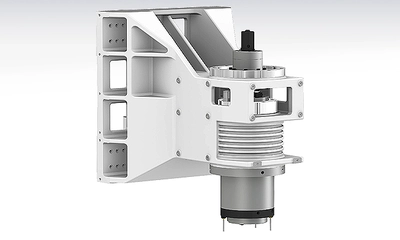

Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K, 20K)
Increases strength through structural analysis
Expands machining domain with y-axis 560mm design
Shortens not-cutting time with rapid feeds (40/40/36m/min.)

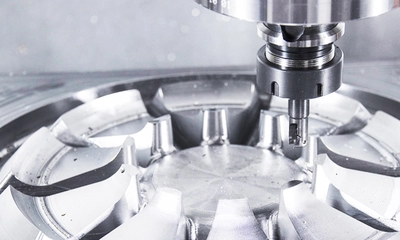

Mould packages for optimum mould manufacturing (20K built-in)
Applied the latest HEIDENHAIN TNC 620 controller
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 49.21×22 in
Max. Load Capacity: 1,000 kg
Spindle Driving Method: Direct
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 20/15 hp
Spindle Torque: 432/105.5 ft.lbs
Travel(X/Y/Z): 43.3″ / 20.05″ / 20.47″ in
Rapid Feed Rate(X/Y/Z): 1575/1575/1417 in/min

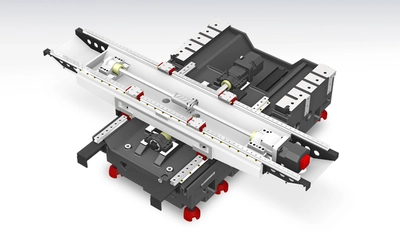

Slide Type: LM

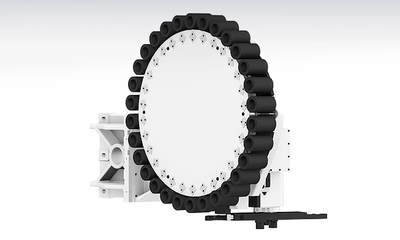

No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.2 sec
