NEW EUROTECH KF4600
Overview

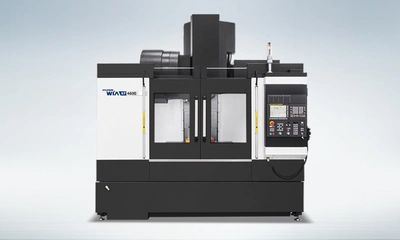

Hyundai Wia KF4600
Features
Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K)
Increases strength through structural analysis
Expands machining domain with y-axis 460mm design
Shortens not-cutting time with rapid feeds (36/36/36m/min.)
Applied the latest HEIDENHAIN TNC 620 controller
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 41.34×18.1 in
Max. Load Capacity: 600 kg
Spindle Driving Method: Direct
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 25/15 hp
Spindle Torque: 87/51.6 ft.lbs
Travel(X/Y/Z): 35.43/18.1/20.5 in
Rapid Feed Rate(X/Y/Z): 1417/1417/1417 m/min
Slide Type: LM
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.2 sec
