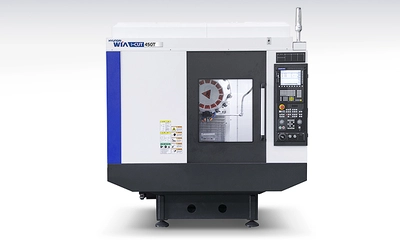

NEW HYUNDAI WIA I-CUT450T
Overview
Tapping Center
Designed with advanced technology, Hyundai WIA’s Tapping Center shows high performance in speed, rigidity and precision
Features
450mm of Y-axis travel optimized for small & mid-size parts machining
High-speed (max. 15,000 rpm), direct-connection spindle
Servo motor-powered armless-type ATC
Specs
Table Size: 33.5″×18.1″ inch
Max. Load Capacity: 661 lb
Spindle Driving Method: Direct
Spindle Taper: BBT30
Spindle RPM: 12,000 r/min
Spindle Power: 18.9/5.5 HP
Spindle Torque: 33.2/15.5 lbf.ft
Travel(X/Y/Z): 27.6″/17.7″/13″ inch
Rapid Feed Rate(X/Y/Z): 56/56/56 m/min
Slide Type: LM
No. of Tools: 14 EA
Tool Change Time
(Chip To Chip): 1.89 sec
