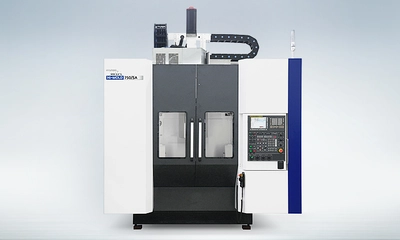

NEW HYUNDAI WIA HI-MOLD750/5A
Overview
Features

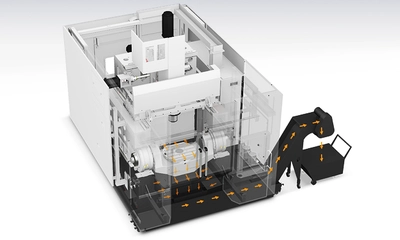

Double column structure
Highly accurate main spindles with ultra-precise angular contact bearings

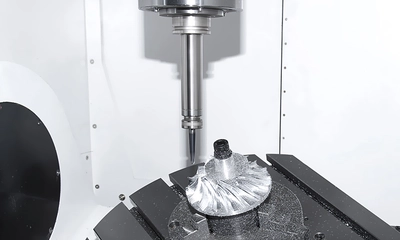

Built-in ultra-high-speed (15,000rpm) main spindle for highest quality of molds

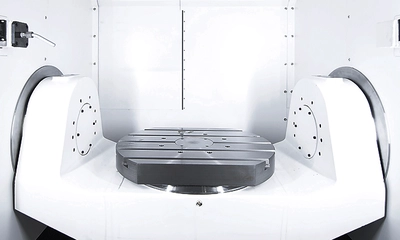

Built-in 5-axis table bed to satisfy various processing needs
Hyundai WIA mold package delivers optimal processing of mold parts
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: Ø 24.8″× 19.69″ in
Max. Load Capacity: 1102 lbs
Spindle Driving Method: Built in
Spindle Taper: HSK-A63
Spindle RPM: 15,000 r/min
Spindle Power: 33.5/30 hp
Spindle Torque: 123/70 ft.lbs
Travel(X/Y/Z): 25.6/30.12 (+13.78ATC)
/20 in
Travel(A/C): 150°(+30°~-120°)/360° deg
Rapid Feed Rate(X/Y/Z): 1968.5″ /1968.5″ /1968.5″ in/min
Rapid Feed Rate(A/C): 40/50 r/min
Slide Type: LM

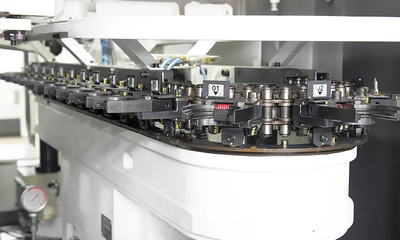

No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 4.5 sec
