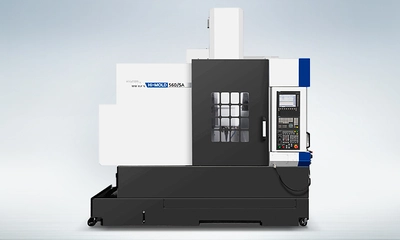

NEW HYUNDAI WIA HI-MOLD560/5A
Overview
Features
Highly reliable wall type structure
Highly accurate main spindles with ultra-precise angular contact bearings
Built-in ultra high-speed (40,000rpm) main spindle for the highest quality of molds (Opt.)

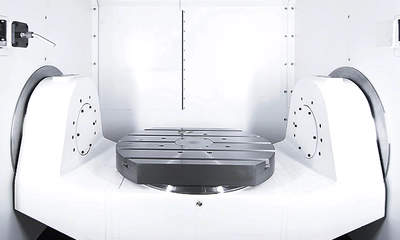

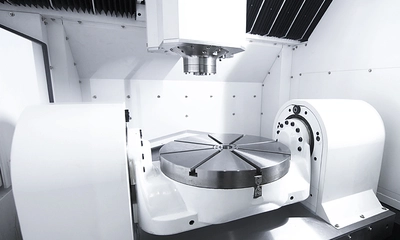

Built-in 5-axis table to satisfy various processing needs (HiMOLD560/5A)
Hyundai WIA mold package delivers optimal processing of mold parts
Latest SIEMENS 840D Controller for various software needs
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: Ø 19.67″ × 10.63″ in
Max. Load Capacity: 551 lbs
Spindle Driving Method: Built in
Spindle Taper: HSK-A63
Spindle RPM: 24,000 r/min
Spindle Power: 45/33.5 hp
Spindle Torque: 70.8/ 53.5 ft.lbs
Travel(X/Y/Z): 39.37(+13.78 ATC)
/22/17.7 in
Travel(A/C): +30° ~ -120°/360° deg
Rapid Feed Rate(X/Y/Z): 51967/1967/1967 in/min
Rapid Feed Rate(A/C): 100/170 r/min
Slide Type: LM
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 5.5 sec
