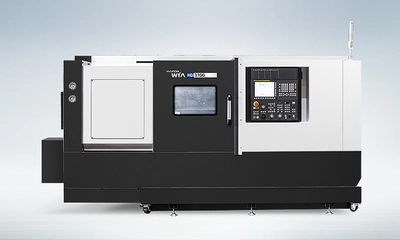

NEW HYUNDAI WIA HD3100SYA
Overview
Features
Box guideways for enhancement of cutting capability
One-piece and 30° degree slanted bed assures high-rigidity in structure
Minimized thermal displacement through stabilized machine component
Complex machining is possible with BMT55P turret transferred by wedge type Y-axis
Specs
Max Turning Dia: 16.5″ in
Max Turning Length: 29.9″ in
Chuck Size: 10″ in
Sub-Spindle: 6″ in
Bar Capacity: Main: 3.2″ Sub: 2″ in
Driving Method: Belt
Spindle RPM: 3500 r/min
Sub Spindle RPM: 4500 r/min
Spindle Output (max/cont.): 35/25 hp
Sub Spindle Output (max/cont.): 10/7.4 hp
Travel((X/Y/Z/ZB): 10.4′′/4.7′′/32.7′′/32.7′′ in
Slide Type: BOX
No. of Tools: 12 (BMT65P) EA
