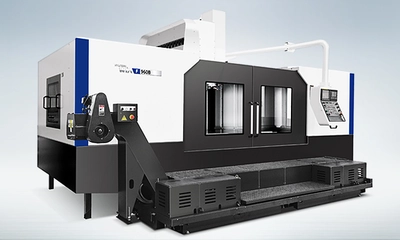

NEW HYUNDAI WIA F960B
Overview
Hyundai Wia F960B
Features
Ultra precision Cylindrical Roller Bearing on the main spindle
Ultra powerful heavy duty-cutting through high-rigidity gear drive method
Box Guides on all axis for superb heavy duty cutting
4WAY 10 faces Box Guide design (F960B)
Air Semi-Rising Slide Way to decrease feed load
Latest SIEMENS 828D installation for abundant processing software
Specs
Table Size: 2,700×950 mm
Max. Load Capacity: 4,500 kg
Spindle Driving Method: GEAR
Spindle Taper: BBT50
Spindle RPM: 8,000 r/min
Spindle Power: 22/18.5 kW
Spindle Torque: 776/657 N.m
Travel(X/Y/Z): 2,45/960/850 mm
Rapid Feed Rate(X/Y/Z): 16/16/20 m/min
Slide Type: BOX
No. of Tools: 20 EA
Tool Change Time
(Chip To Chip): 8.5 sec
