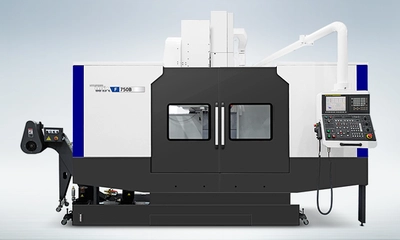

NEW HYUNDAI WIA F750B
Overview
Hyundai Wia F750B
Features
Ultra precision Cylindrical Roller Bearing in the main spindle
Extremely powerful heavy duty-cutting with high torque gear driven spindle
Box Guides on all axis for superb heavy duty cutting
4WAY 10 faces Box Guide design (F960B)
Pneumatic pressurized Slide Way for high accuracy feed and positioning
Latest SIEMENS 828D control equipped with exceptional processing software
Specs
Table Size: 1,800×700 mm
Max. Load Capacity: 2,000 kg
Spindle Driving Method: Gear
Spindle Taper: BBT50
Spindle RPM: 4,500 r/min
Spindle Power: 18.5/15 kW
Spindle Torque: 893/732 N.m
Travel(X/Y/Z): 1,550/750/720 mm
Rapid Feed Rate(X/Y/Z): 16/16/12 m/min
Slide Type: BOX
No. of Tools: 20 EA
Tool Change Time
(Chip To Chip): 8.5 sec
