NEW HYUNDAI WIA F600B
Overview

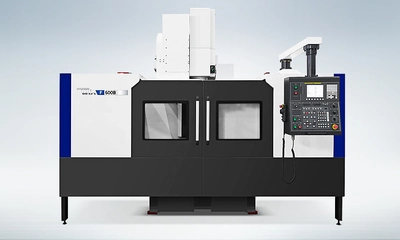

Hyundai Wia F600B
Features
Main spindle with super precision angular contact bearing
High-powered, high-torque main spindle for superb heavy duty cutting
Main spindle with gear drive for high-power and high torque
Box guideways for exceptional feeding during heavy duty cutting
Latest Servo ATC for highly efficient tool exchanging
Specs
Table Size: 1,600×600 mm
Max. Load Capacity: 1000 kg
Spindle Driving Method: GEAR
Spindle Taper: BT50
Spindle RPM: 4,500 r/min
Spindle Power: 15/11 kW
Spindle Torque: 731/535 N.m
Travel(X/Y/Z): 1,150/600/600 mm
Rapid Feed Rate(X/Y/Z): 24/24/24 m/min
Slide Type: BOX
No. of Tools: 20 EA
Tool Change Time
(Chip To Chip): 6.8 sec
