NEW HYUNDAI WIA F500D
Overview

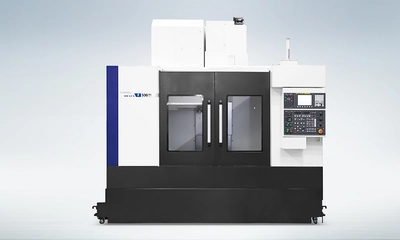

Hyundai Wia F500D
Features
High-precision P4 Angular Contact Bearing main spindle
High-powered, high-torque main spindle for heavy duty cutting
Dual Tables for high productivity
Latest Servo ATC technology for the fastest tool change in its class
Roller LM Guide X & Y Axis for optimal feed (F500D)
Z axis Box Guideways for high precision heavy cutting (F600D)
Latest SIEMENS 828D controls with wide range of supporting software (option)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 2 – 27.56×19.68 in
Max. Load Capacity: 2 – 350 kg
Spindle Driving Method: Belt
Spindle Taper: BT40
Spindle RPM: 8,000 r/min
Spindle Output: 20/15 hp
Spindle Torque: 211.68/105.47 ft.lbs
Travel(X/Y/Z): 23.6/18.1/22.4 in
Rapid Feed Rate(X/Y/Z): 1575/1575/1181 in/min
Slide Type: LM
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 4.3 sec
