NEW FANUC BED
Overview

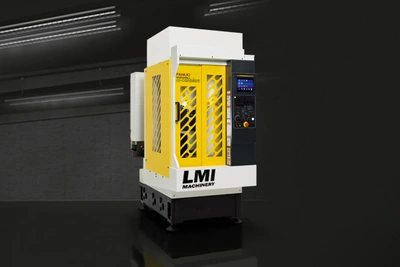

Fanuc D21SiB5 Advance
Up to 8,000 rpm Tapping
• Column Design Change, Better Clearance,
More Ridged
• Longer Z-Axis Stroke 400 mm
• Servo Turret
• Greater Tool Weight Capacity 4 kg
• Up to 880 Table Load Capacity
• Increased Y-Axis Clearance to Column
• Improved Y & Z-Axis Way Covers
• Improved Spindle Head Cover
• Faster Tool Change Time 0.7 Tool-to-Tool 1.3
Chip-to-Chip
• Improved Electrical Cabinet Design
• Power Fail Backup Module Included
• 31iB5 iHMI Control, Touch Screen
• Smart Overlap Cycle Time Reduction Features
• 32,000,000 Pulse Encoders with Least Input
Increment of 0.1 um Program Command
• Full 5-Axis Capable
Specs
X-Axis: 11.8 (300)
Y-Axis: 11.8 (300)
Z-Axis: 15.7 (400)
Table Size: 24.8 x 13
(630 x 330)
Max. Table Load: 441 (200)
Machine Weight: 4,290 (1,946)
Floor Space: 39.1 x 87.4
(995 x 2,220)
Height: 88 (2,236)
Controllable Axis: 5
Controller: 31i-B5
Spindle Speed: 10,000 | 24,000
Spindle Taper: BIG PLUS BBT-30
Rigid Tapping Speed: 6,000 | 8,000
Rapid Traverse Rate: 2,125 (54)
Tool Capacity: 14|21
Max. Tool Diameter: 3.15 (80)
Max. Tool Length: 7.5 (190)
Max. Tool Weight: 8.8 (4)
Tool-to-Tool Time: 0.7
Chip-to-Chip Time: 1.3
