NEW FANUC BED
Overview

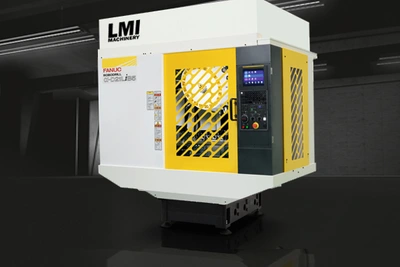

Fanuc D21LiB5 Advance
Up to 8,000 rpm Tapping
• Column Design Change, Better Clearance,
More Ridged
• Longer Z-Axis Stroke 400 mm
• Servo Turret
• Greater Tool Weight Capacity 4 kg
• Up to 880 Table Load Capacity
• Increased Y-Axis Clearance to Column
• Improved Y & Z-Axis Way Covers
• Improved Spindle Head Cover
• Faster Tool Change Time 0.7 Tool-to-Tool 1.3
Chip-to-Chip
• Improved Electrical Cabinet Design
• Power Fail Backup Module Included
• 31iB5 iHMI Control, Touch Screen
• Smart Overlap Cycle Time Reduction Features
• 32,000,000 Pulse Encoders with Least Input
Increment of 0.1 um Program Command
• Full 5-Axis Capable
Ultra Precise
32,000,000 Pulse Encoders
Specs
X-Axis: 27.6 (700)
Y-Axis: 15.7 (400)
Z-Axis: 15.7 (400)
Table Size: 33.5 x 16.1
(850 x 410)
Max. Table Load: 882 (400)
Machine Weight: 4,620 (2,096)
Floor Space: 85.2 x 80.7
(2,165 x 2,050)
Height: 88 (2,236)
Controllable Axis: 5
Controller: 31i-B5
Spindle Speed: 10,000 | 24,000
Spindle Taper: BIG PLUS BBT-30
Rigid Tapping Speed: 6,000 | 8,000
Rapid Traverse Rate: 2,125 (54)
Tool Capacity: 14|21
Max. Tool Diameter: 3.15 (80)
Max. Tool Length: 9.8 (250)
Max. Tool Weight: 8.8 (4)
Tool-to-Tool Time: 0.7
Chip-to-Chip Time: 1.3
