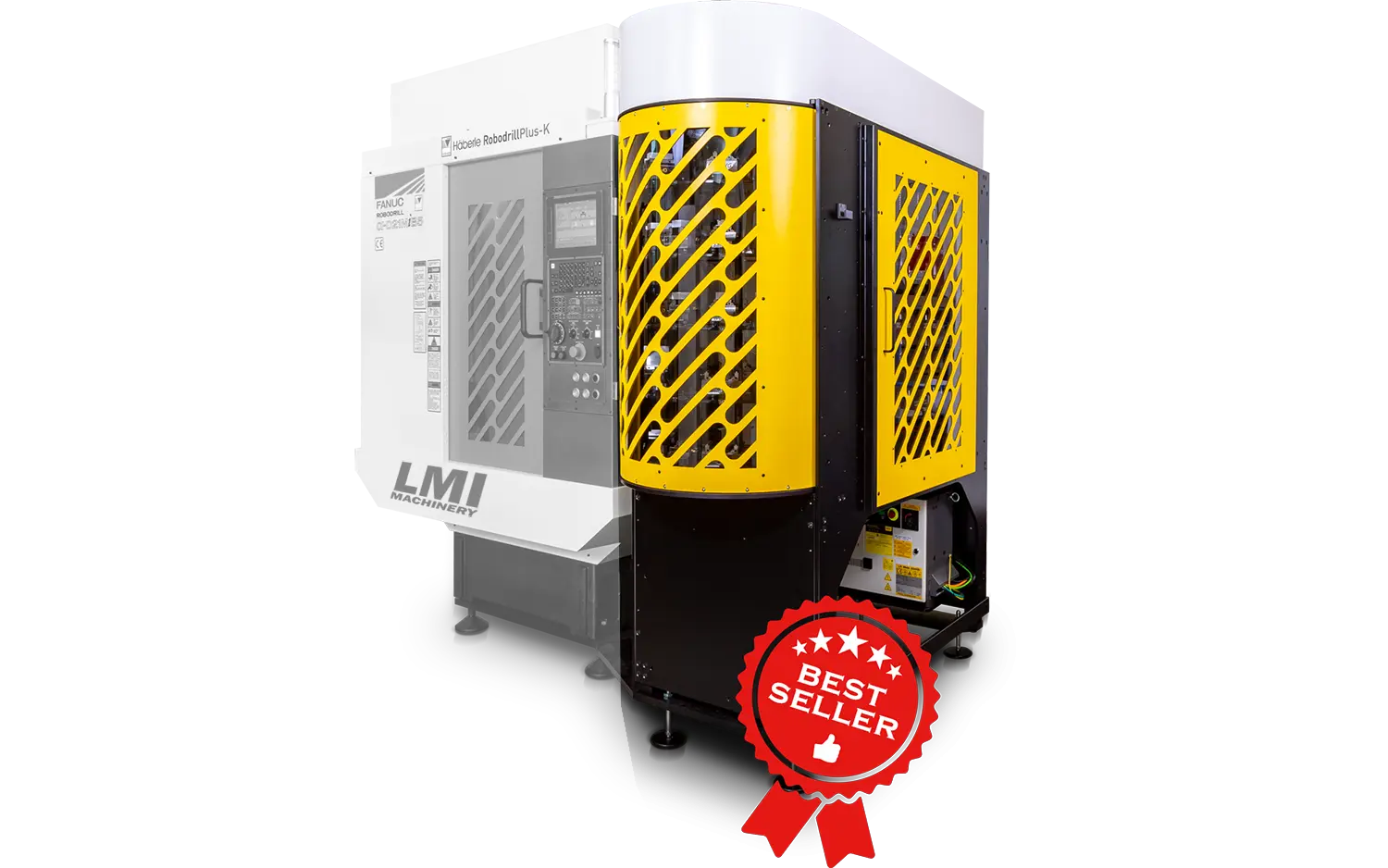

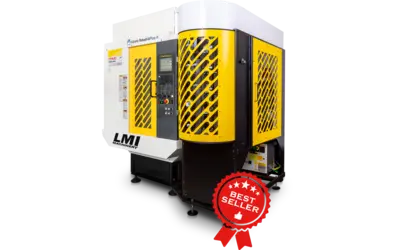

The Fanuc Plus-K Automation System is an innovative robotic automation cell solution that is added to a medium bed Fanuc RoboDrill that not only exchanges part carriers but also tool holders to further enhance the functionality of the RoboDrill. The compact automation system is only 32” wide and is secured to the machine on a set of rigid brackets.
The idea of this robot cell is to fill up the Rotary Storage Carousel with a number of work-piece carriers and the extra tooling required for the different work-pieces it and let it run. Setups are reduced because the system is based on the robot loading and unloading work-piece carriers into and out of the machine. Because these quick change carriers are designed with a common feature to be used by the robot and clamped in the machine on a common clamping system, no programming for the robot is required and no setup in the machine is required.
Work pieces are secured in vises or blank pallets which are intended to be customized for the specific holding requirements. These pallets are placed in the rotary carousel along with the required tool
FEATURES & BENEFITS
Fanuc Plus-K Automation Assembly Including:

4 tool racks each holding 11 tool positions for a total of 44 extra tool positions
Rotary Storage Carousel with 60 part/part carrier positions
(1)Steel base, stand and sheet metal enclosure, (2) Bottom support brackets with leveling feet to secure enclosure to the machine

(2) Safety interlocked doors in the front and side, (1) Removable panel back.

Plus-K Simple Pallet Management System
4 tool racks each holding 11 tool positions for a total of 44 extra tool positions
Rotary Storage Carousel with 60 part/part carrier positions
(1)Steel base, stand and sheet metal enclosure, (2) Bottom support brackets with leveling feet to secure enclosure to the machine

(2) Safety interlocked doors in the front and side, (1) Removable panel back.
(2) Safety interlocked doors in the front and side, (1) Removable panel back.
Plus-K Simple Pallet Management System
FANUC LR Mate 200iD 6 axis Articulating Arm Industrial Grade Robot w/R-30iB Mate Controller including:

Motion Package, RoboDrill Connection Interface software option, elevator motor and control
End of arm tooling system including:

(2) pneumatic, parallel close, two jaw grippers with close position sensor, 1 set of blank gripper fingers
Motion Package, RoboDrill Connection Interface software option, elevator motor and control
End of arm tooling system including:

(2) pneumatic, parallel close, two jaw grippers with close position sensor, 1 set of blank gripper fingers
(2) pneumatic, parallel close, two jaw grippers with close position sensor, 1 set of blank gripper fingers
Elevator System Base Programming in Robot

Programming supplied to operate Carousel system. End user to set initial pick up point as well as row and column details
Programming supplied to operate Carousel system. End user to set initial pick up point as well as row and column details
