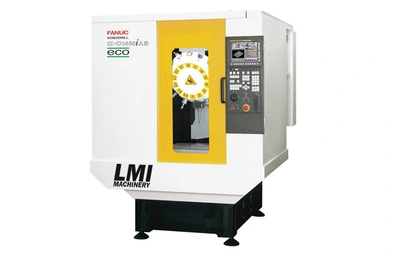

NEW FANUC ECO
Overview
Lightning fast & cost effective
▪ Compact Design
▪ FANUC 31i-B Nano CNC System
▪ Ultra Precise 32,000,000 Pulse/Rev Encoders
▪ Ai Contour Control I
▪ Thermal Growth Compensation
▪ 1.5G Accel/Decel
▪ Helical Interpolation
▪ Rigid Tapping 5,000rpm
▪ Thread Milling
▪ High Speed Reverse Tapping
▪ “Quick” Tap Recovery System
▪ Simultaneous ATC / Table Positioning
▪ Easy to Automate
▪ Coolant Thru Ready
▪ Built 100% in Japan
Optional Features
• Rotary tables & indexers
• 4/5 Axis machining
• Robotic loading
• Methods turnkey
Specs
X-Axis: 19.7 (500mm)
Y-Axis: 15.7 (400mm)
Z-Axis: 13(330mm)
Table Size: 25.6 x 15.7
Max. Table Load: 660 Lbs.
Machine Weight: 4,400 (1,996)
Floor Space: 63.5 x 80.7
(1,615 x 2,050)
Height: 88 (2,236)
Controllable Axis: 5
Controller: 31i-B
Spindle Speed: 10,000
Spindle Taper: BT-30
Rapid Traverse Rate: 2125 IPM/1181 IPM
Tool Capacity: 14
Tool-to-Tool Time: 0.9
Chip-to-Chip Time: 1.6
