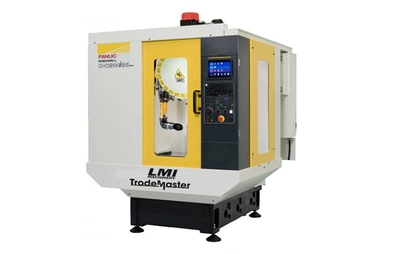

NEW FANUC TRODEMASTER
Overview
Intigrated 1,000 CFM Torit Downflo® Oval dust collector provides up to 25% more filtration capacity than other same-sized cartridge collectors
FANUC 31i-B5 Nano Control with ultra precise 32 million pulse / rev encoder
24,000 rpm 30 taper BIG-PLUS spindle
The Trodemaster high speed VMC offers a compact, low cost footprint capable of machining graphite or copper electrodes. With 24,000 RPM spindle and loaded with FANUC high speed software, dust collector, laser tool touch setter and the FANUC 31iMb-5 control, this machining center can make fast work of complex electrodes for EDM operations. These machines make the perfect companion to a Methods Exeron Die Sinker EDM machine.
FEATURES & BENEFITS
Laser Tool Probe
Dust Collector
Up to 5 Axis Simultaneous Machining
FANUC 31i-B5 Nano CNC System
Ultra Precise 16,000,000 Pulse/Rev Encoders
Ai Contour Control II
Thermal Growth Compensation
1.6 Sec Chip to Chip
1.5G Accel/Decel
Helical Interpolation
Program Storage
Rigid Tapping 5,000/8,000 RPM
Thread Milling
High Speed Reverse Tapping
“Quick” Tap Recovery System
Simultaneous ATC / Table Positioning
Easy to Automate
Built 100% in Japan
OPTIONS
4/5 Axis Tables
Spindle Probes
Programmable Coolant Nozzles
Mist Collector
Auto Doors
Column Risers
Full Turn-Key Solutions
Robotic Automation Packages
Specs
X-Axis: 19.7 (500) in (mm)
Y-Axis: 15.7 (400) in (mm)
Z-Axis: 13 (320) in (mm)
Table Size: 25.6×15.7 (650×400) in (mm)
Max. Table Load: 660 Lbs.
Machine Weight: 4400 (1996) lbs (kg)
Floor Space: 63.5 x 80.7
(1,615 x 2,050)
Height: 88 (2,236)
Controllable Axis: 5
Controller: 31i-B
Spindle Speed: 24,000
Spindle Taper: BIG-PLUS BBT-30
Rapid Traverse Rate: 2125 IPM/1181 IPM
ATC type: 14/21
Tool-to-Tool Time: 0.9
Chip-to-Chip Time: 1.3
Max. Tool Weight: 8.8 (4)
Max. Tool Length: 9.8
