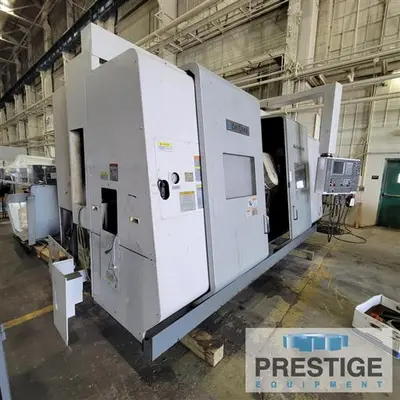

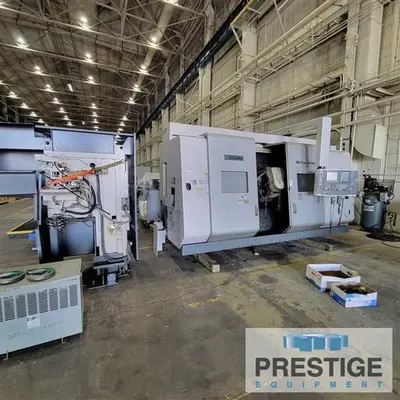

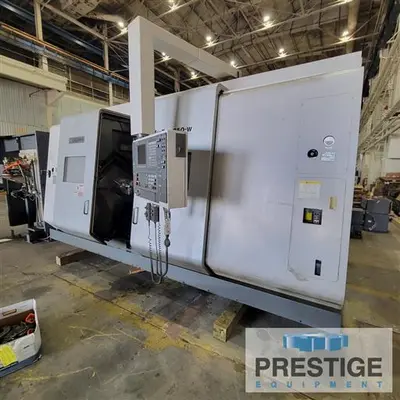

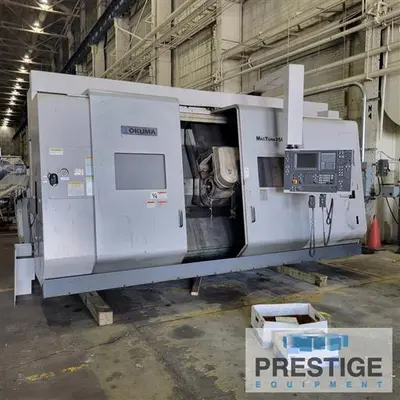

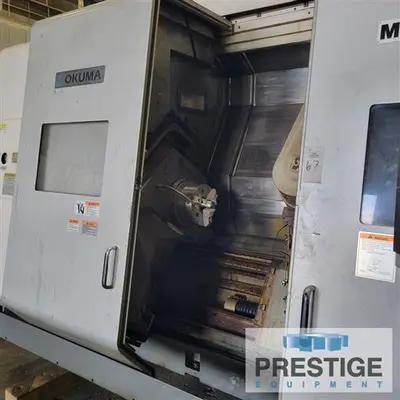

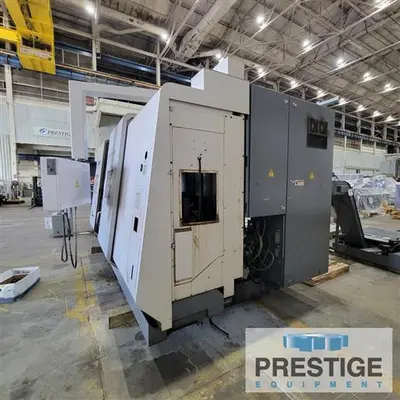

USED 2004 OKUMA MACTURN 350W

CAPACITIES:
Swing Over Bed: 21.65"
Maximum Turning Diameter: 20.87"
Maximum Turning Length: 63.98"
X-Axis Cross Travel: 19.88"
Z-Axis Longitudinal Travel: 65.75"
Y-Axis Travel, Tool Spindle: 7.48" (+/-3.74")
C-Axis Resolution: 0.001 Degrees

SPINDLE 1:
Spindle Motor: 30 HP
Maximum Spindle Speed: 5000 RPM
Spindle Nose: JIS A2-8
Spindle Bore: 2.44"
Bar Capacity: 2.0"

SPINDLE 2:
Spindle Motor: 15 HP
Maximum Spindle Speed: 5000 RPM
Spindle Nose: JIS A2-8

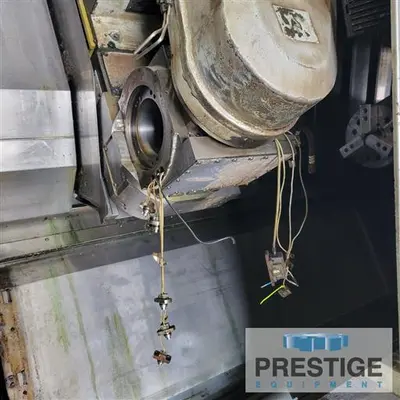

B-AXIS TOOL SPINDLE:
Spindle Speed: to 12,000 RPM
Spindle Taper: CAPTO C6
B-Axis Rotation: 210 Degrees

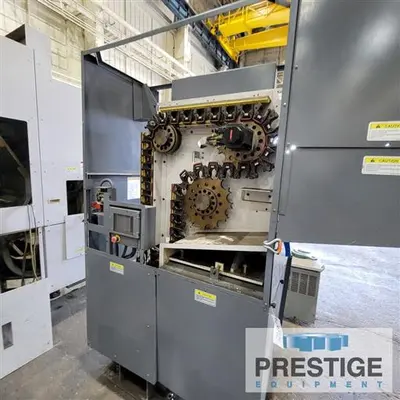

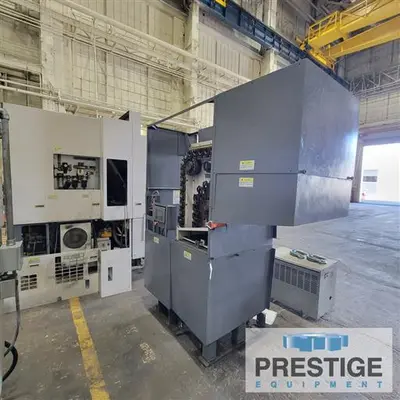

AUTOMATIC TOOL CHANGER:
Total Tool Positions: 84 ATC
Tool Taper: CAPTO C6

RAPID FEEDRATES:
X-Axis Rapid Traverse Rate: 1161 IPM
Z-Axis Rapid Traverse Rate: 1575 IPM

Equipped With:

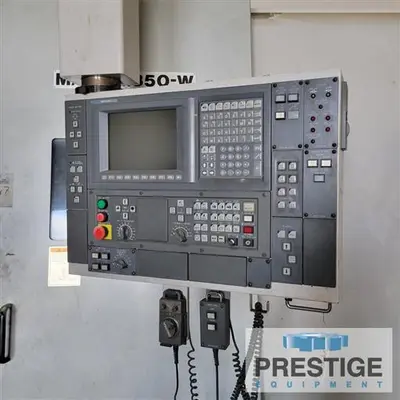

OSP-E100L CNC Control

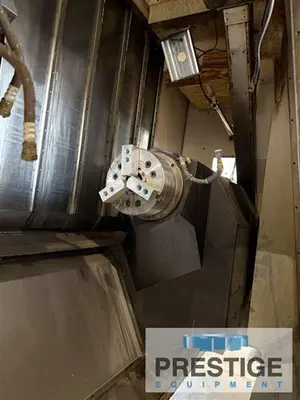

10" 3-Jaw Chuck on Left Spindle
10" 3-Jaw Chuck on Right Spindle
2-Axis 12,000 RPM Tool Spindle
84-Position Automatic Tool Changer
Touch Setter
Thru-Spindle Coolant
Chip Conveyor
Includes (18) CAPTO C6 Tool Holders

NOTE:

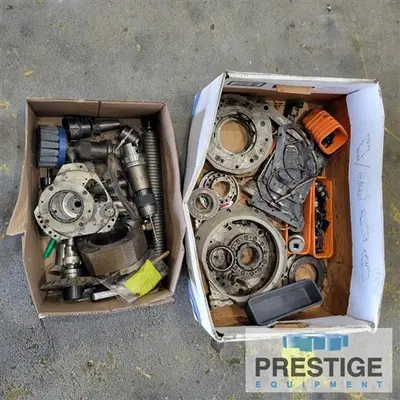

Tool Spindle Needs Repairs - Please Call For More Information

LOCATION:
Philadelphia, PA

Features:
OSP-E100L CNC Control

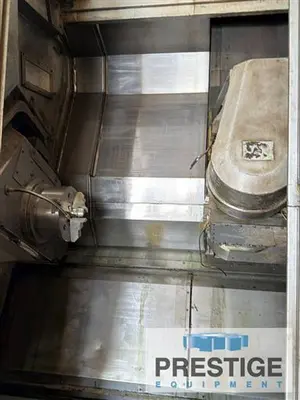

Main Spindle (Left-Side)
Sub Spindle (Right Side)
10" Chuck on L & R Spindles
2-Axis 12,000 RPM B-Axis Tool Spindle
Y-Axis Upper Slide Movement
84-Position Automatic Tool Changer
Thru-Spindle Coolant
Chip Conveyor
