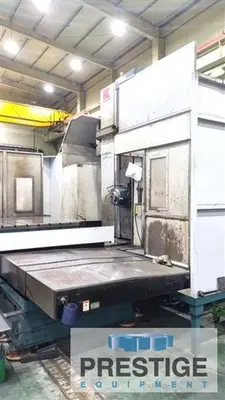

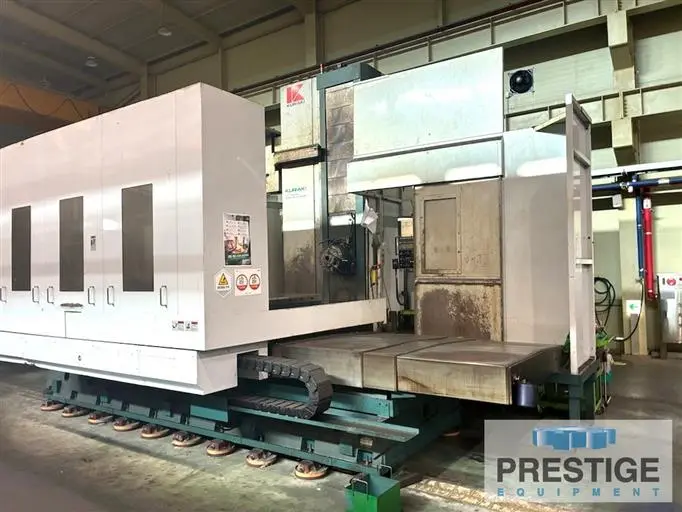

USED 2017 KURAKI KBT-13EB-A

CAPACITY:
Spindle Diameter: 5.12"
Spindle Taper: #50 Big Plus
Vertical Head Travel, Y-Axis: 90.55"
Table Travel, X-Axis: 118.11"
Spindle Travel, W-Axis: 25.59"
Column Cross Travel, Z-Axis: 62.99"
Table Size: 70.87" x 86.61"
Table Load Capacity: 26,400 LBS
Rotary Table, B-Axis: 0.001 Degrees
Spindle Speeds: 5-4,000 RPM
Speed Ranges: 3
Feeds: .04 - 157.48 IPM
Rapid Traverse, X,Y,Z, Axes: 393.70 IPM
Rapid Traverse, W-Axis: 236.22 IPM
Floor Space: 268.9" x 267.72"
Machine Height: 188.9"
Machine Weight: 79,200 lbs

Equipped With:
Fanuc 31i, Model B5 CNC Control
40-Station Automatic Tool Changer

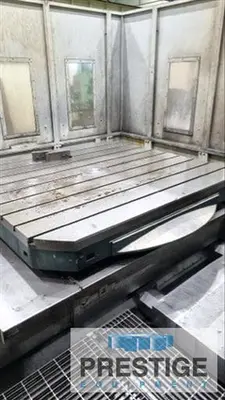

70.87" x 86.61" Built In B-Axis Rotary Table
Thru Spindle Coolant
Rear Exit Chip Conveyor
30 HP Spindle Motor

NOTE:
Inspect In Plant Under Power

Features:

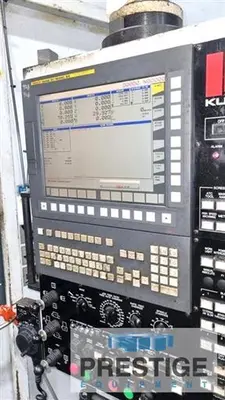

Fanuc 31i, Model B5 CNC Controls
40 Station Automatic Tool Changer
Thru-Spindle Coolant
