USED 2008 CHARLES ROSS & SON COMPANY PDM-4
Overview
Description

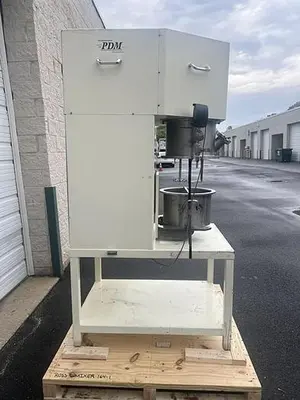

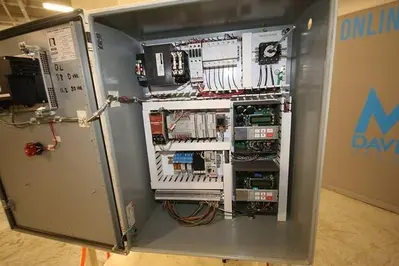

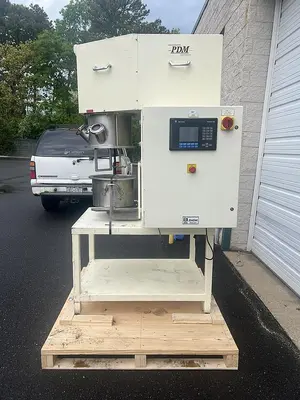

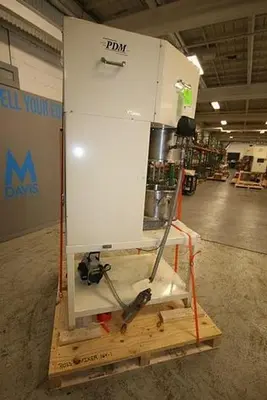

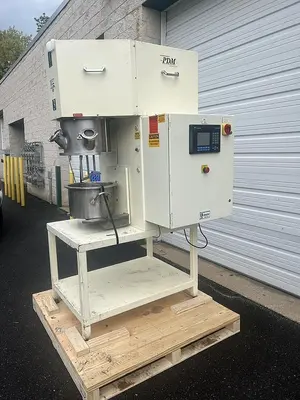

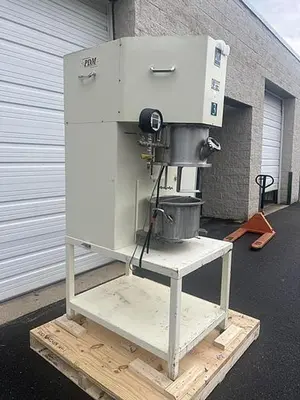

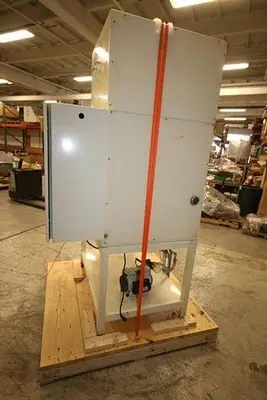

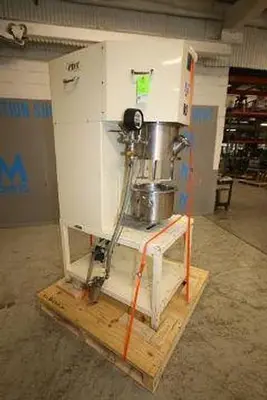

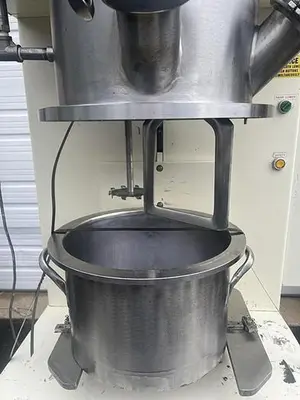

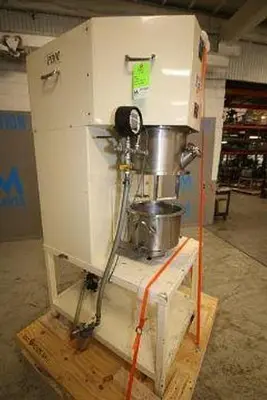

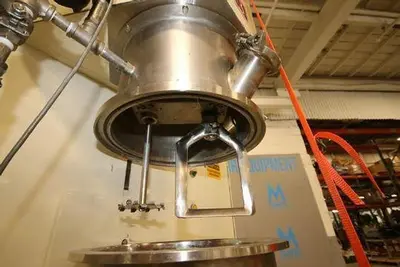

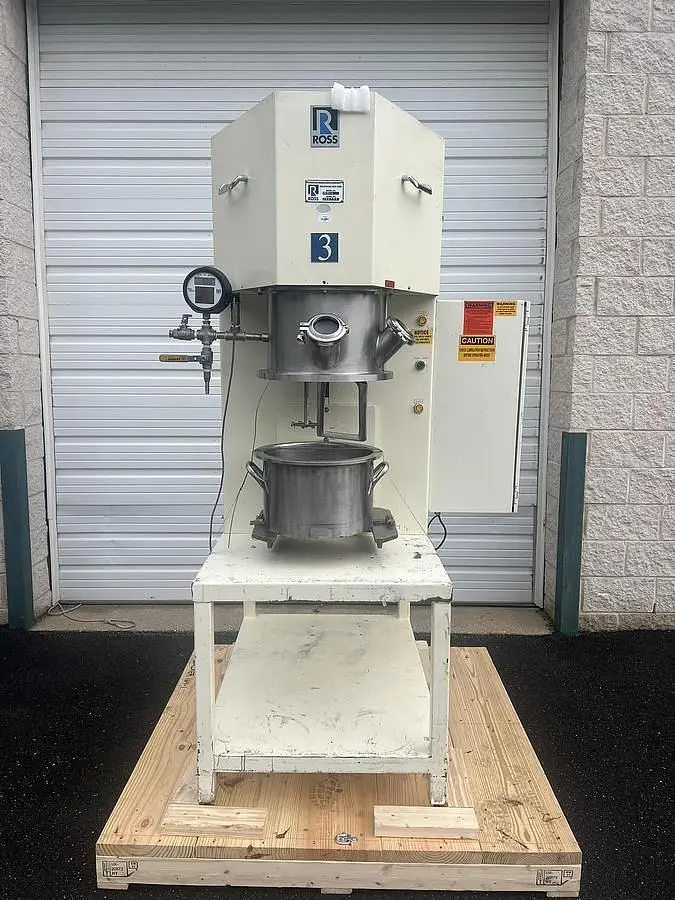

Ross Model PDM-4 Planetary Disperser Mixer designed for mixing, dispersing, blending, and homogenizing high-viscosity products. Unit is equipped with a planetary mixing blade and a high-speed disperser blade operating within a 14" diameter x 8" deep stainless steel mixing bowl. The mixer includes an Allen-Bradley Micrologix 1200 PLC control system with PanelView 600 operator interface, variable frequency drives, vacuum system, and Shelco filter assembly. The system is mounted on a floor-standing frame with pneumatically raised mixing head and was last used in ink manufacturing applications. Designed for batch processing of coatings, inks, adhesives, sealants, pigments, specialty chemicals, and other viscous products requiring simultaneous planetary mixing and high-shear dispersion. Includes two single-wall stainless steel mix cans and vacuum pump package.
Specifications
Stock Number: 5991828
Manufacturer: Charles Ross & Son Company
Model: PDM-4
Year: 2008

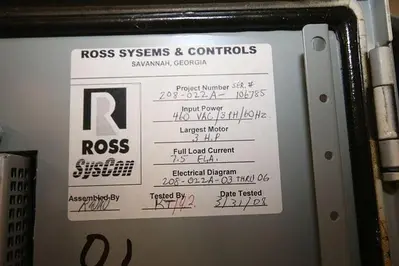

Serial Number: 106785
Gallons: 4
Type: Planetary Disperser Mixer
Bowl Construction: Stainless Steel
Bowl Style: Single Wall
Agitation: Planetary Blade
Previous Use: Ink Manufacturing
Basis: As-is, Where-is
