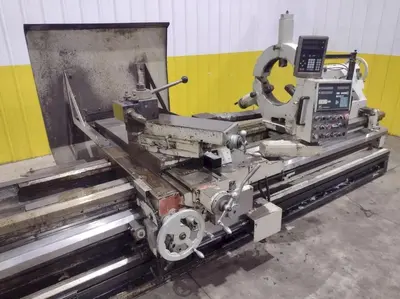

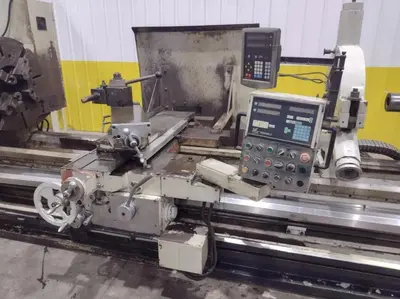

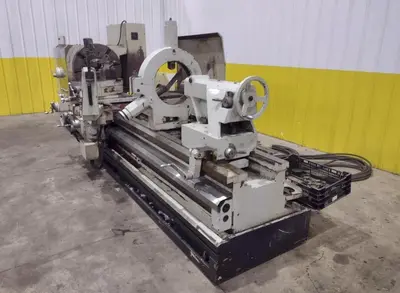

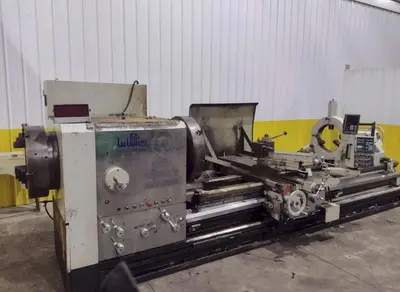

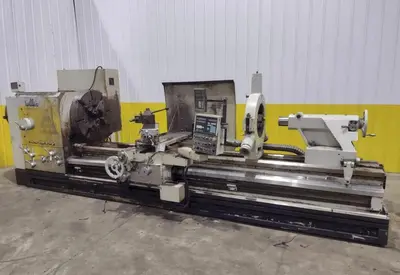

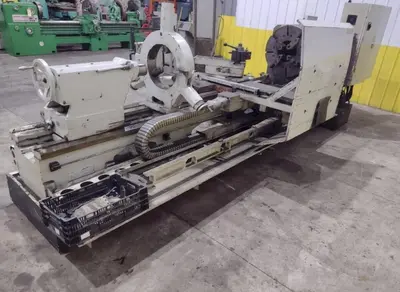

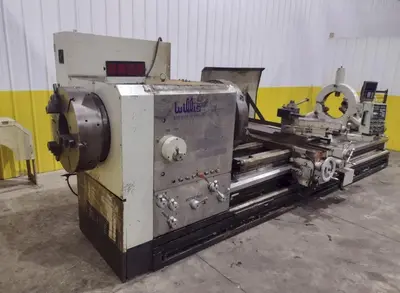

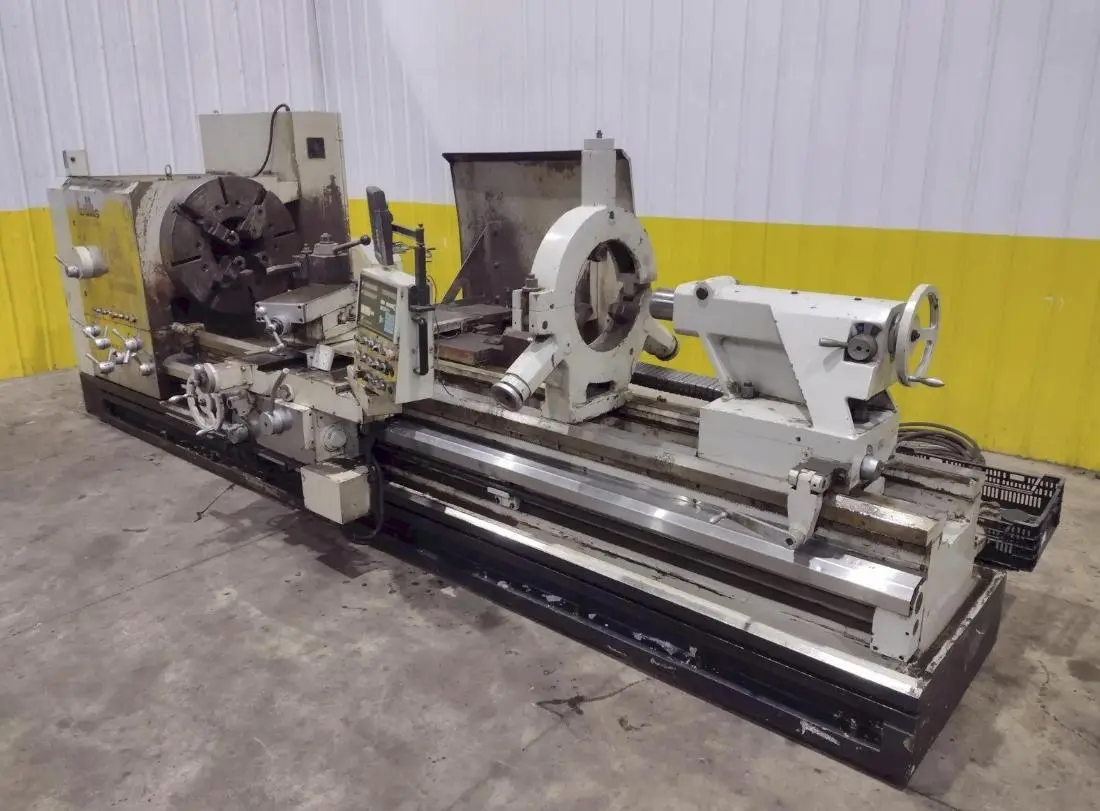

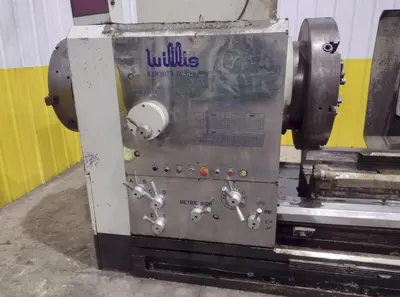

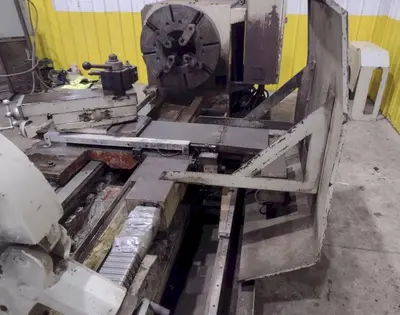

USED WILLIS PK35

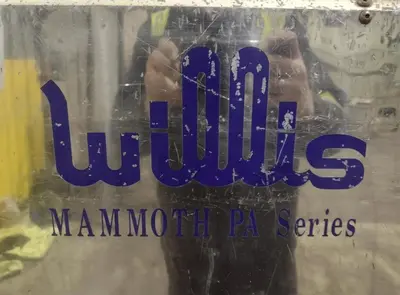

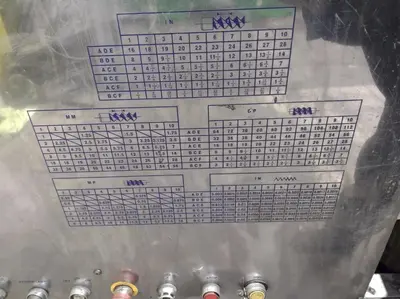

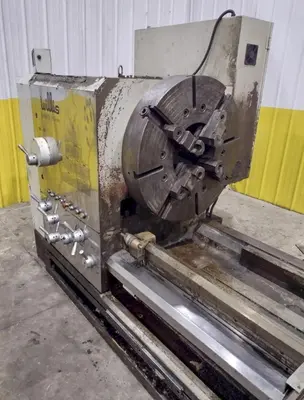

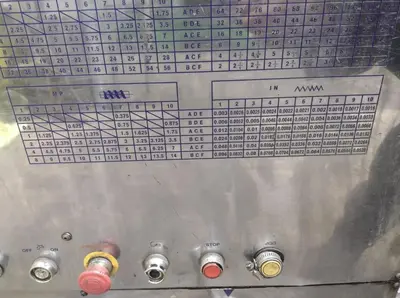

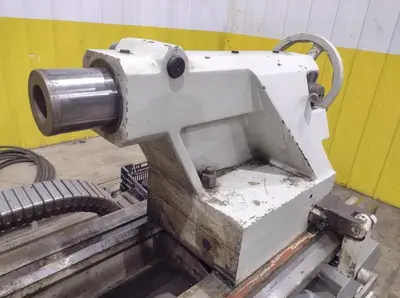

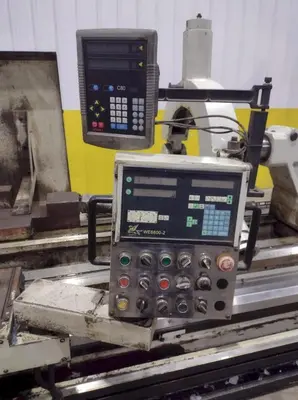

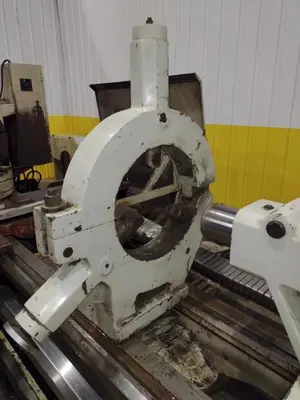

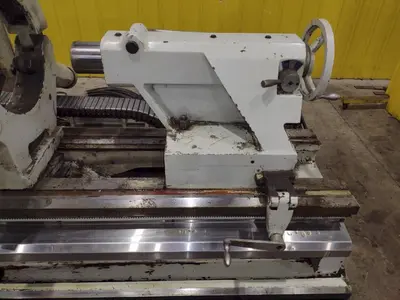

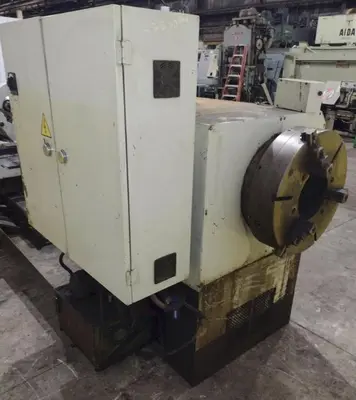

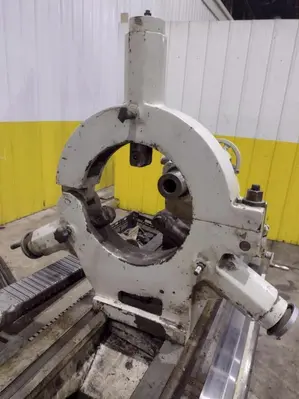

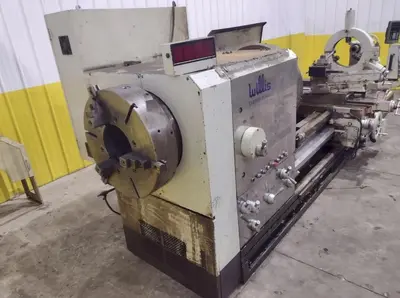

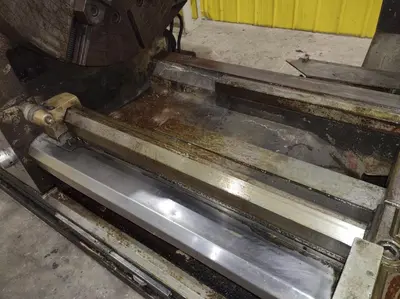

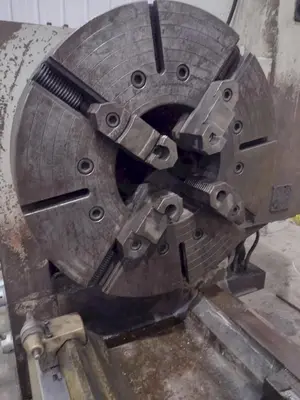

MODEL ................................. PK 35SERIES ................................ MAMMOTH PASWING OVER BED ........................ 34.65" (880 MM)SWING OVER CROSS ...................... 24.21" (615 MM)SWING IN GAP .......................... 52.76" (1340 MM)GAP LENGTH ............................ 14"CENTER DISTANCE ....................... 120" (3000 MM)SPINDLE HOLE .......................... 10" (255 MM)SPINDLE SPEEDS ........................ 6 TO 480 RPMBED WIDTH ............................. 25.98" (660 MM)CROSS SLIDE TRAVEL .................... 26.40" (670 MM)LONGITUDINAL FEEDS .................... 0.0018 TO 0.1 IPR (0.045 TO 2.55 MMPR)CROSS FEEDS ........................... 0.0009 TO 0.05 IPR (0.023 TO 1.28 MMPR)RAPID FEED ............................ YESMETRIC THREADING ...................... (60) 1 TO 56 MMINCH THREADING ........................ (60) 1/2 TO 28 TPI REAR CHUCK ............................ 25" (3 JAW)FRONT CHUCK ........................... 30" (4 JAW)STEADY REST ........................... 16" HOLETHREAD DIAL ........................... YESTAILSTOCK ............................. 2 SPEEDTAILSTOCK QUILL ....................... 4.52" (115 MM)TAILSTOCK TRAVEL ...................... 7.87" (200 MM)TAILSTOCK TAPER ....................... #6 MTDIGITAL READ OUTS ..................... 2 AXISCOOLANT PUMP .......................... 1/8 HPMAIN MOTOR ............................ 30 HP (22KW)
