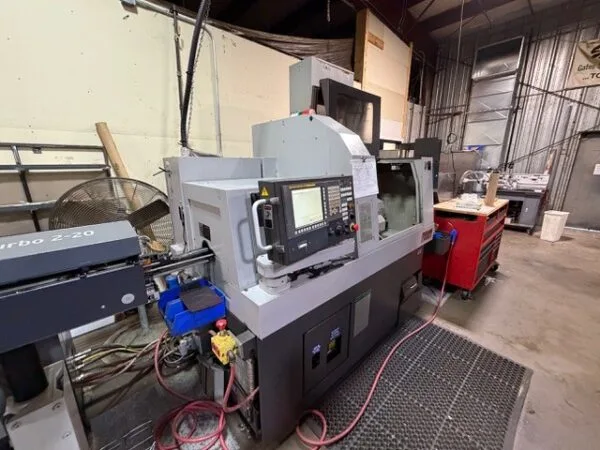

Tsugami S206 – 2019

2019 Tsugmai S206
MACHINE SPECIFICATIONS

MAX TURNING DIAMETER: 0.79″ (20 MM)

MAX TURNING LENGTH: 9.843″ (250 MM)

MAX TURNING LENGTH WITH GRIPPING UNIT: 8.26″ (210MM)

MAX BAR CAPACITY: 0.79″ (20 MM)

MAX TOOL POSITIONS: 25

MAX. MAIN SPINDLE DRILLING DIAMETER: 0.39″ (10 MM)

MAX. MAIN SPINDLE TAPPING DIAMETER: M8

MAX. BACK SPINDLE CHUCKING DIAMETER: 0.79″ (20 MM)

MAX. BACK SPINDLE DRILLING DIAMETER: 0.31″ (8 MM)

MAX. BACK SPINDLE TAPPING DIAMETER: M6

MAX. CROSS DRILLING DIAMETER: 0.275 ( 7 MM)/ER11 AND 0.393″ (10 MM)/ER16

MAX. CROSS TAPPING DIAMETER: M5 X 0.8 (OPTION)

MAX. TOOL SPINDLE SLOTTING CUTTER DIAMETER: 1.18″ (30 MM)

MAX. TOOL SPINDLE DRILLING DIAMETER: 0.314″ (8 MM)

MAX. BACK TAPPING DIAMETER: M5

MAIN SPINDLE INDEXING: 360° (FULL C-AXIS)

MAIN SPINDLE BORE: 0.79″ (20 MM)

MAIN SPINDLE SPEED: 10000 RPM

BACK SPINDLE MOTOR: 3.7 KW

BACK SPINDLE INDEXING: 360° (FULL C-AXIS)

BACK SPINDLE SPEED: 12000 RPM

CROSS TURN STATIONS: 8

CROSS DRILL STATIONS: 3

MAIN/SUB DRILL STATIONS: 5

SUB DRILLING STATIONS: 4

LIVE CROSS MILL STATIONS: 2

LIVE SUB MILLING STATIONS: 4

DRIVEN TOOL SPEED: 8000 RPM

DRIVEN TOOL MOTOR: 75 KW (FRONT TOOL POST) 1 KW (REAR TOOL POST)
MACHINE EQUIPPED WITH

FANUC 32I-MB CNC CONTROL

CONTROLLED AXES (LINER AXES) X1, X2, Y1, Y2, Z1, Z2

FMB TURBO 2 – 20 BAR FEEDER (made in Germany)

BACK SPINDLE

LIVE TOOLS CAPABLE

LONG PARTS CAPABLE

C & Y AXIS CAPABILITIES

MPG HANDWHEEL CONTROL

MAIN & BACK SPINDLE SYNCHRONIZATION

HIGH SPEED RAPID TRAVERS: 944 IPM

HIGH SPEED PROGRAM PROCESSING

ABSOLUTE POSITION DETECTION

AUTOMATIC LUBRICATION SYSTEM

PART CATCHER

COOLANT TANK

CHIP CONVEYOR

TRI-MIST COLLECTOR
