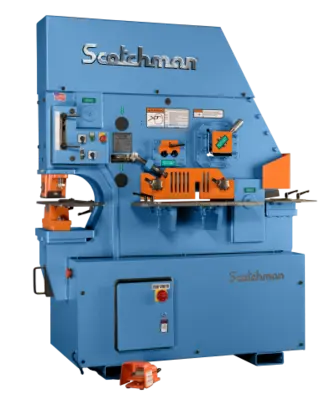

Scotchman FI 8510-20M Ironworker
Overview
Have you ever heard the phrase “Sleeping Giant”? Scotchman Industries’ “Sleeping Giant” is our fully-integrated, FI 8510-20M hydraulic ironworker. Pound for pound, ton for ton, and dollar for dollar, there is nothing on the market that compares to this ironworker machine.
This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 1/2” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher.
The FI8510-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s, best in the business, 3-year parts warranty.
Specs
Rated on: 65,000 PSI Tensile and A 36 Mild Steel
Punching Capacity: 85 ton, 1-1/16" in 1"(77 mt, 27 mm in 25 mm)
Special Tooling: 4" Max. Dia. (100 mm Max. Dia. )
Throat Depth: 10"(250 mm)
Flat Bar Shear: 20" Length, 1" x 12", 3/4" x 20"(500 mm, 25 mm x 300 mm, 19 mm x 500 mm)
Angle Shear 90°: 6" x 6" x 1/2"(150 mm x 150 mm x 12 mm)
45° with Bar Shear : 4" x 4" x 1/2"(100 mm x 100 mm x 12 mm)
Brake 12": 85 ton(77 mt)
Brake 24": 85 ton(77 mt)
Open End Brake: Max. 1/4" x 5" Flat or Angle Iron(6 mm x 125 mm)
Pipe Notcher Schedule 40 I. D. : 3/4", 1", 1-1/4", 1-1/2", 2" (19 mm, 25 mm, 32 mm, 38 mm, 50 mm)
90° V-Notcher: 6" x 6" x 5/16"(150 mm x 150 mm x 8 mm)
Rectangle Notcher 90° V. Notch: 3" x 5" x 1/2", 3" x 3" x 1/2"(75 mm x 125 mm x 12 mm, 75 mm x 75 mm x 12 mm)
Channel Shear: 2" to 6" Adj. (50 mm to 150 mm Adj. )
Strut Shear: Samples Required
Strokes Per Minute in Light Material: 1/4" Stroke [Punch Station] (35 spm)
Strokes per minute in light material: 3/4" Stroke [Punch Station] (14 spm)
Hydraulics: 2,600 psi (183 bar)
Motors Standard: 5 hp 3 ph, 230/460, 208/380/575 (3.76 kW)
Motors Optional: 5 hp 1 ph, 230v (3.76 kW)
Dimensions: W-30", L-67", H-77"(W-76 cm, L-168 cm, H-195 cm)
Shipping Weight: 4,554 lbs(2,065 kg)
