USED Meuser M35R
Overview
Description
EQUIPPED WITH:
POWER ELEVATION & CLAMPING OF ARM ON COLUMN
T-SLOTTED BASE
T-SLOTTED BOX TABLE
TRAV-A-DIAL FOR LONGITUDINAL HEAD TRAVEL ON ARM
1-1/2 HORSE POWER ELEVATION MOTOR
4 HORSE POWER SPINDLE MOTOR
While all shipping related costs are extra, we’ll use our warehouse cranes to load this machine,
unless otherwise arranged. There will be no charge on open OR closed trailer or truck.
Questions? Call us Toll free at our main office. Visit Store. Call 1-888-four fifty-nine.-4025
We’re really friendly- and it’s much better than back and forth messages 🙂
This great condition compressor can be shipped duty-free continent wide. To let us
help you ship at the most economic cost AND do your paperwork hassle-free –
right to your door- Just give us a call !
NOTE: Much of our inventory is on our Machineco Montreal website, or elsewhere-
so this compressor is subject to prior sale, even if it is still currently listed.
TERMS and CONDITIONS
All shipping related costs are extra and all risks of operation and ownership of item
is the responsibility of Buyer, upon unloading. All legal recourses may only take place
under the laws applicable in the legal jurisdiction of Seller .(Sorry we have to put this in
because once we were sued 17 years later, out of Boson, after 7 changes of owners AFTER we sold
a machine.for falso “product liability”.(and the Court dismissed the unfounded case against us)
Specs

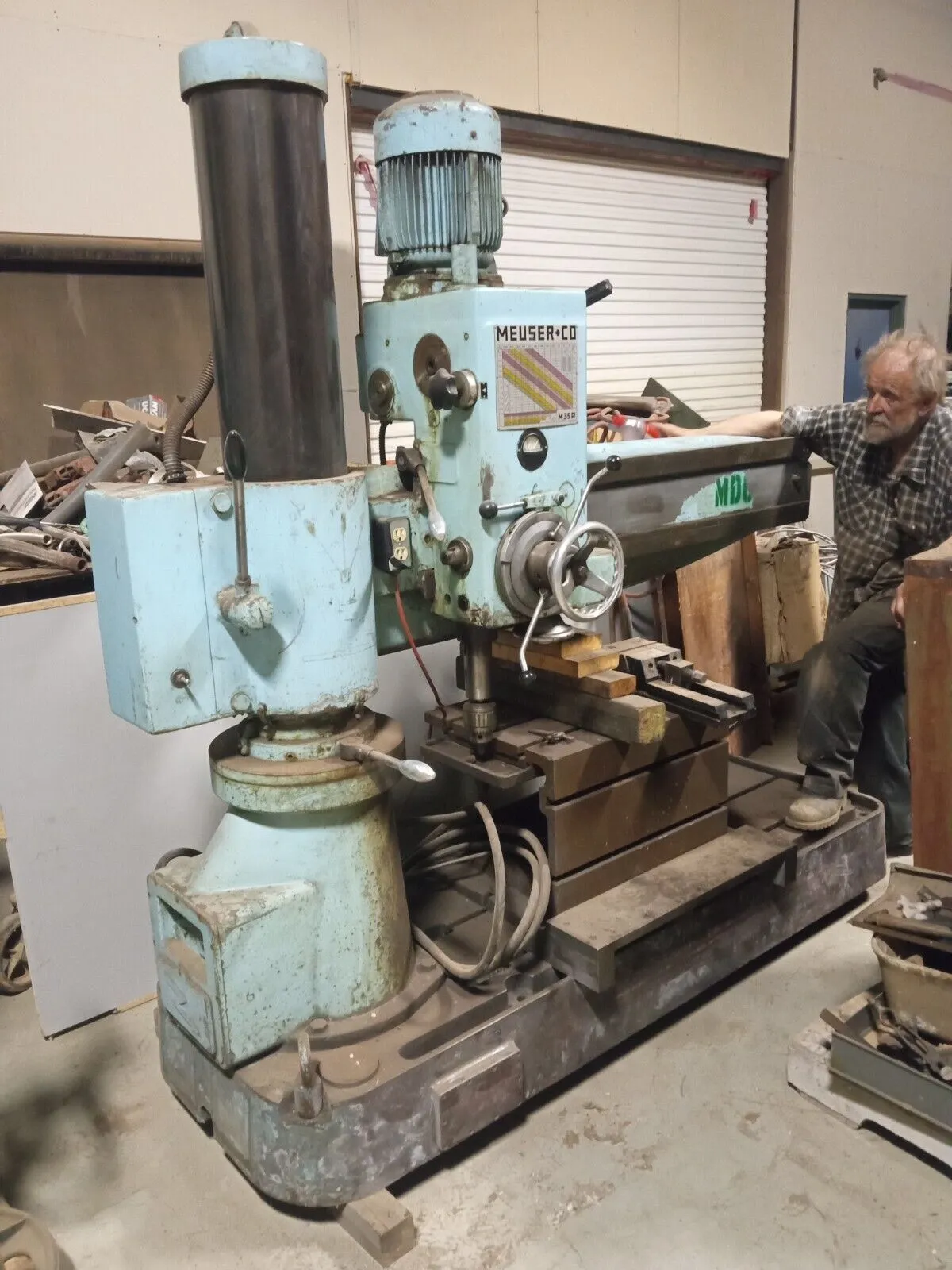

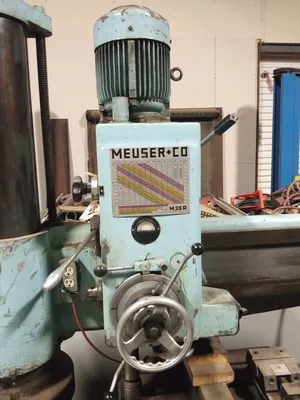

4 x 9″ MEUSER RADIAL DRILL MODEL: M35R
SPECIFICATIONS:
DIAMETER OF COLUMN ………………… 9″
MAX DISTANCE SPINDLE TO COLUMN ……… 48″
MIN DISTANCE SPINDLE TO COLUMN ……… 6-1/2″
MAX DISTANCE SPINDLE TO BASE ……….. 46″
MIN DISTANCE SPINDLE TO BASE ……….. 15″
VERTICAL ADJUSTMENT OF ARM …………. 23″
DRILLING CAPACITY IN STEEL …………. 1-1/2″
DRILLING CAPACITY IN CAST IRON ……… 2″
TAPPING CAPACITY IN STEEL ………….. 1-1/4″
TAPPING CAPACITY IN CAST IRON ………. 1-1/2″
SPINDLE TAPER …………………….. #4 MT
SPINDLE TRAVEL ……………………. 9″
SPINDLE SPEED RANGE (12) …………… 60 – 2700 RPM
SPINDLE FEED RANGE (6) …………….. .0016″ – .016″
APPROXIMATE BASE DIMENSIONS …………. 29″W x 80″L
APPROX MACHINE WEIGHT ……………… 5,500 LBS
