USED HME GH-55

Description

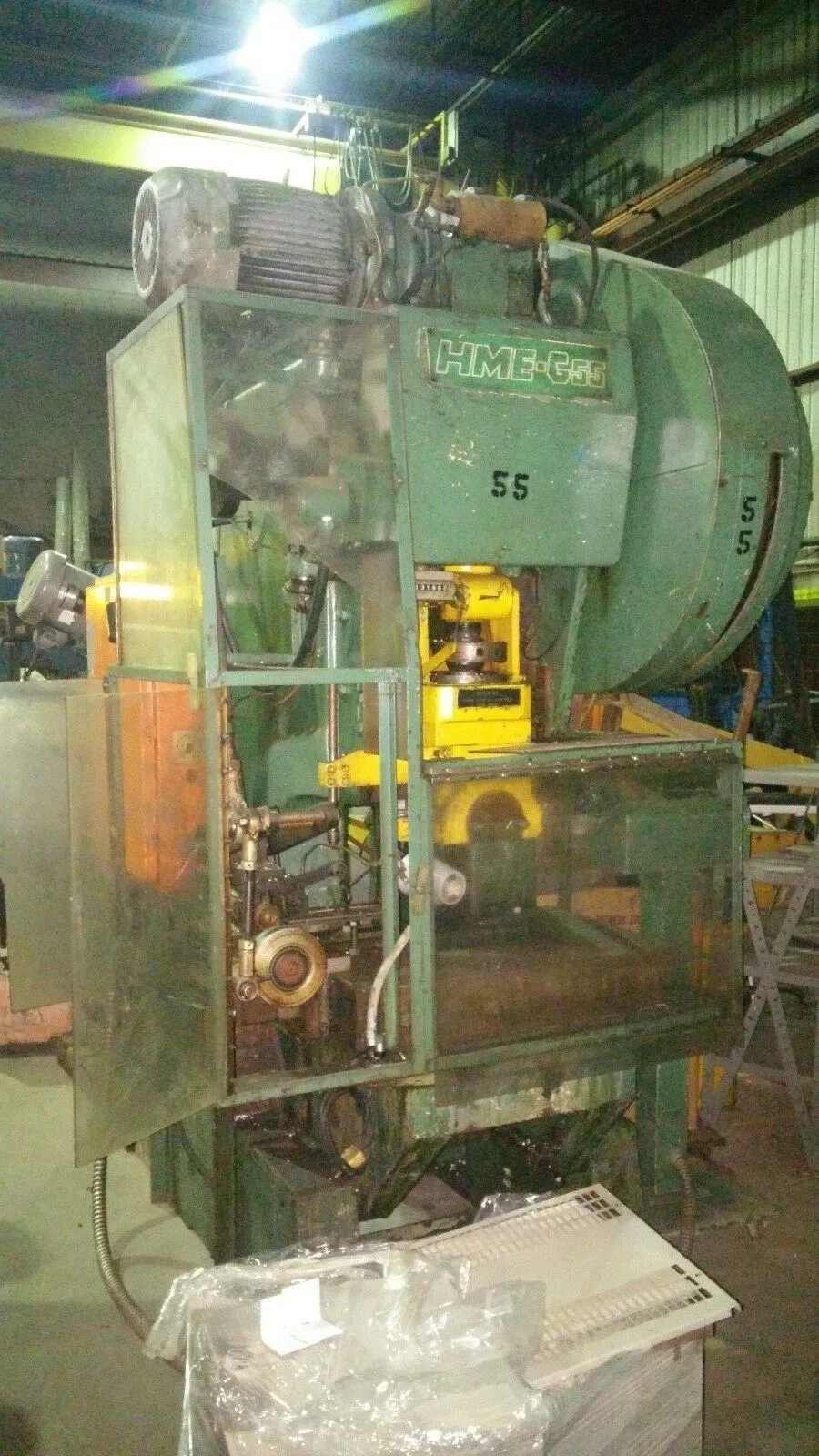

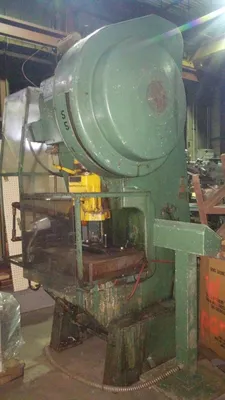

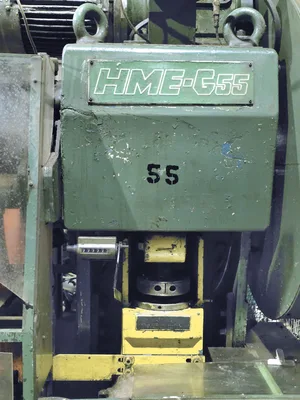

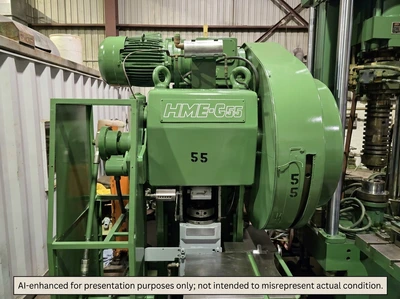

OBI Power Press, HME Mod.GH-55
Capacity:            61.2 tons (USA) .  55 Long Tons (British)
Stroke:               Variable from 1 to 4 inches.

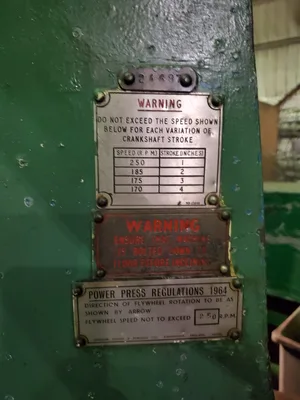

Speed:              Variable- up to  250 SPM.
Bed Area:          31″ LR x. 21″ FB,
Bolster plates:   3½ & 1½ (5″ total) removable

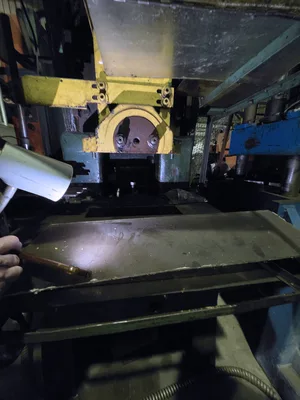

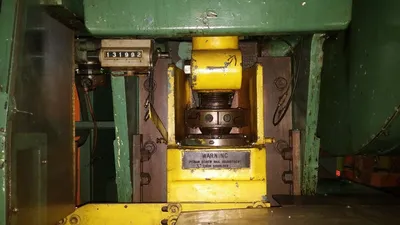

Ram area:        10″ LR x 10½” FB (Both mounting lugs on each side are in good condition)
Ram adjust:      3 ” (up and down)
Shut height:    Measures 15-3/4″ over bed in its current position

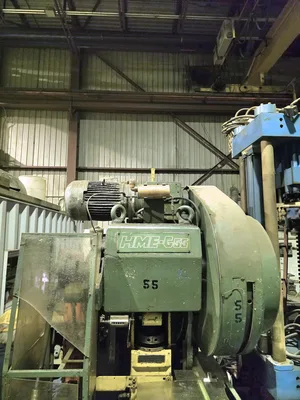

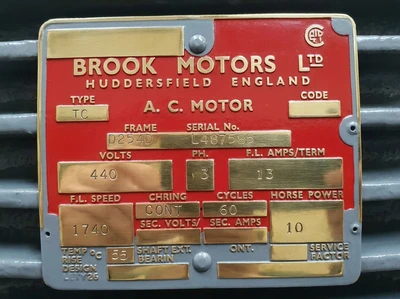

Motor:               10 HP. TEFC. 440V/3/60 Hz

Accessories.   Press is equipped with:
Air  “Hydragrip” Clutch
Full Guards over crank and crankshaft areas
Full clear plastic shields over feeder and main work area.
Rotating ring type adjustable stroke

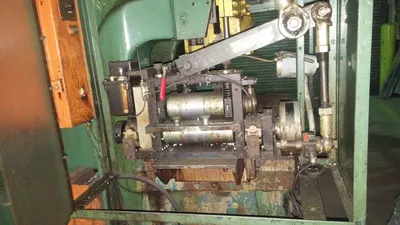

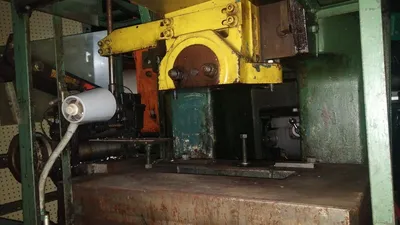

,crank actuated, twin roller strip feeder, installed.
Automated lubrication from central system
Clear hinged guards on front of both press work area and feeder mechanism.

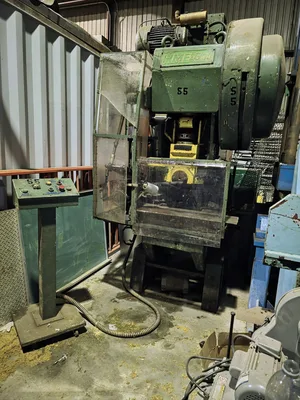

Roll-around control console stand.
Easy open hinged cover to access all parts of the air / Hydragrip clutch
Ring bolts on top for easy hooking and lifting

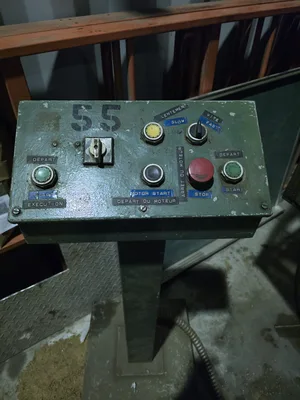

Control Console:
Roll around, push button control console includes:
Emergency-stop,  stop-start- jog buttons, process commencement, mode switch. etc,

NOTE. Ex Scovil corp. of Connecticut, RAU Canada division.  The corporation closed down early this
century and de-registered effectively  ~ 2009. the company had mistaken in trying to
get Chinese quality up to par. We bought the one block long building along with many of  the
precision presses and machine tools  And left if for the former highly skilled tool and die-maker
to reactivate with his children.. That never happened. So this press proably has seen
NO SERVICE in over 25 years!  It was always stored by us in dry, indoor premises.

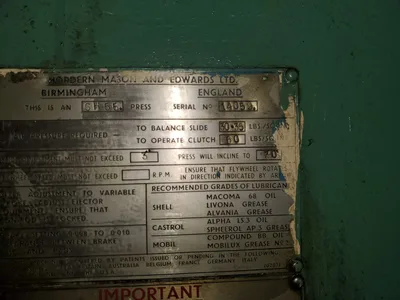

Horden, Mason and Edwards (HME) have a sterling robust reputation!

Price, FOB warehouse #2, Montreal. FREE LOADING . . . . . . $11,500 usd. (negotiable)

We have among the LOWEST Freight rates to all lower 48 states and all of Canada.
Call for details.   Between 8 am and 8 pm.
