USED First / Long Chang LC 20 VS
Overview
Description

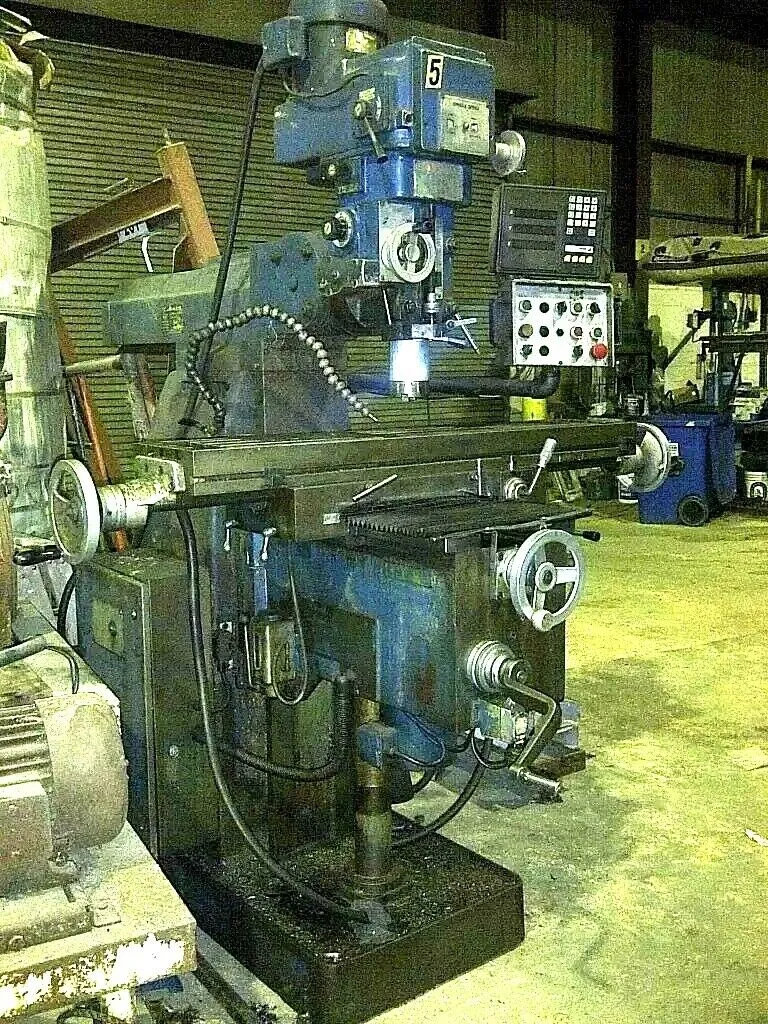

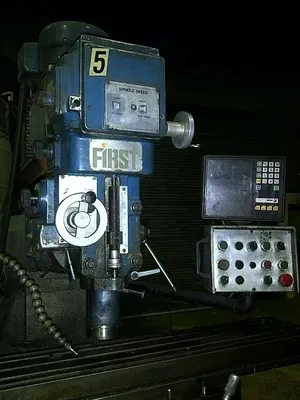

10″ x 50″ Milling machine(Bridgeport-type) vert. turret, ram-type
“First” w/ Digital Read Outs & 3 Axes Power Feeds, #40 spindle, 3HP
(* Sorry for the bad photos. It’s in a high ceiling warehouse. Ask for details you want pics!)
Mod. LC 20 VS (This is a very respected Taiwan builder;
(Just Google this: “Long Chang Machinery, LC20″ (No Chinese 25% tarif !)
Table Size: 10″ x 51″, full-length T-slots
Spindle taper: #40 NMT taper spindle, with drawbar
Spindle Speeds: 100-4500 rpm, continuous variable
Drive Motor: 3 HP
Electrics: 575/3/60 hz (or 460V w/small transformer) or run on 220- 1Ph with a converter)
Weight: 3960 lb.
EQUIPPED :
* Geared power-feeds, to ALL THREE AXES ( X,Y and Z)
* DRO, ‘Fagor’ (2 axis)
* Coolant pump, filter, and all angle del’y pipe.
* Central control console
* Central pressure slides lube
* Ball bearing Jacobs drill chuck
* Cross-slide bellows way cover
* Elevation crank handle
* Safety disconnect-elevation handle
NOTE:
This quality built, precision, vertical milling came directly from a local Tool and Die
making shop that closed down. The Taiwan manufacturer, is ISO certified, 9001 and 9002
Spindle factory specs include (search as above):
– ” Ni-Chrome alloy steel spindles are supported by 3 super precision pre-loaded angular contact ball bearings.
– The spindle drive can be operated as manual feed, micro feed and automatic feed.
– It is ideal for precision milling and drilling operations. ”
We are letting this precise, vertical Bridgeport-type milling machine go to you for:
PRICE . . . . . . . . . . . . . . . . . . . . . . . . . only $6,999.00USD!
(shipping related costs are necessarily extra)
We’ll carefully load it, no-charge, on your carrier (strapped to a large pallet) YES WE CN SHIP WORLDWIDE!
MORE INFO
Call us today for any questions you have! Toll free 1-888-459-4025
(Real humans answer 8am,- 6pm (EST) and msg service after hours)
We’re quite friendly; it’s much faster than back and forth messages 🙂
SHIPPING
Machineco can ship ANYwhere common carriers are available-AND we try to get you a better price for YOU than any you have received.
We can do your shipping and logistics; just give us a call. We’ve been shipping globally for over almost 40 years.
With Machineco, cross-border paperwork can be seamless. Just try us!
NB- As our precision machine tools are publicized on multiple platforms, all items are subject to prior sale- even if currently listed;
All prices exclude your cost for shipping related expenses.
Call us today for any questions you have
Specs
“Very-good condition! Normal wear from use. Mfr was certified ISO 9001, & 9002”
