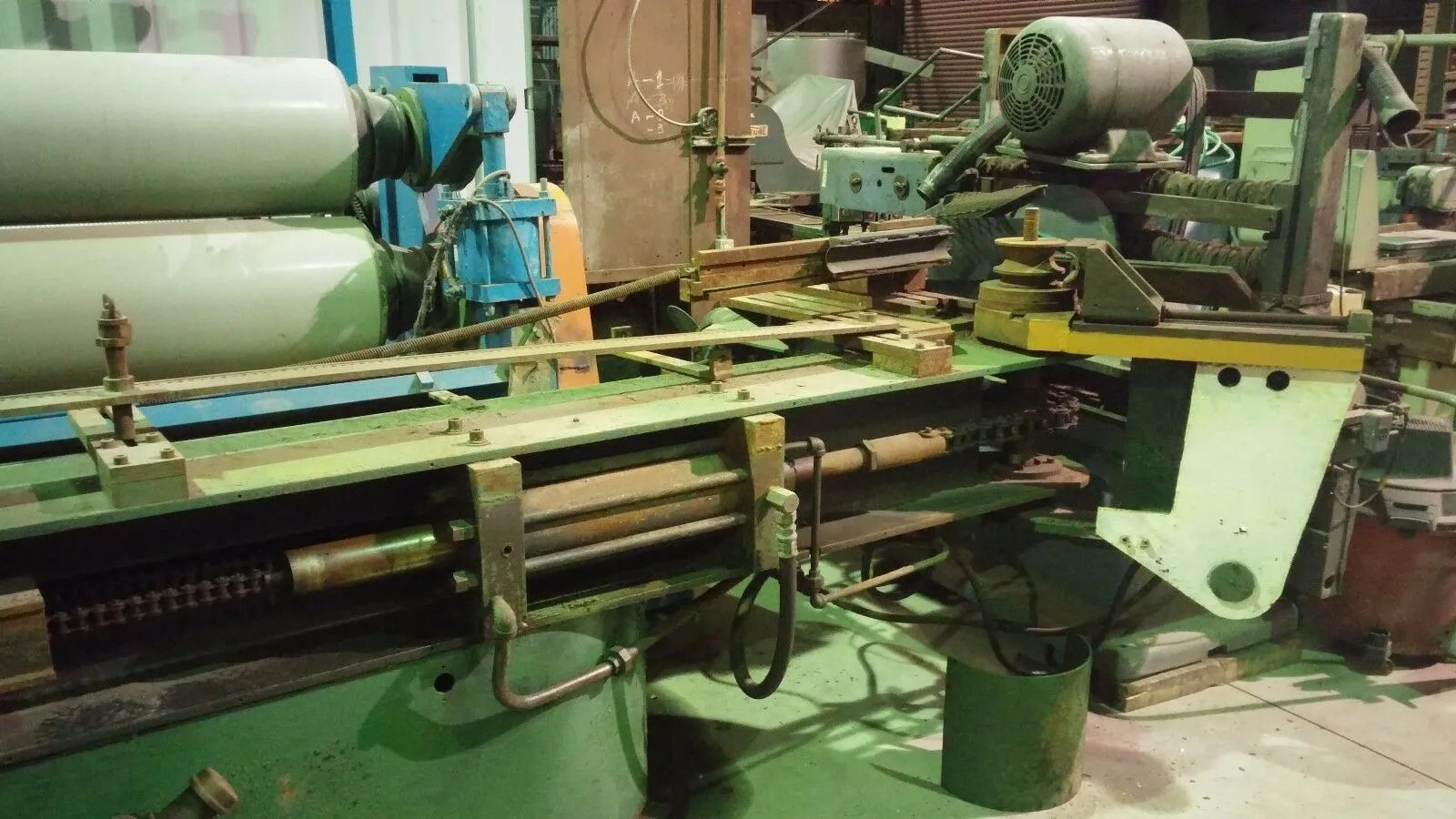

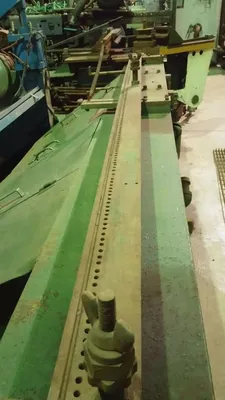

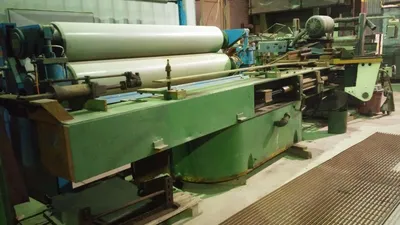

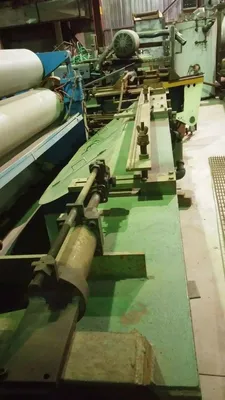

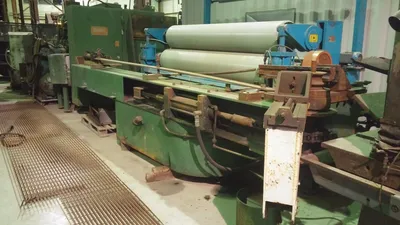

USED Wallace 500 2½
Overview
Description
Type: Horizontal, rotary, mandrel

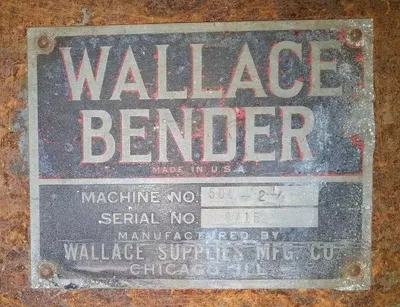

Model & Sn: 500 – 2½, S/N: 8715
Drive: Hyd. cylinder chain drive to rotary head.
Clamping: Hydraulic clamping
Mandrel: Hydraulic extraction, up to about 12½ ft.
Motor: 10 Hp. 3 ph. motor @ ~1750 rpm
Tooling: includes one die (about 3″ Ø, 2½-3″ radius, installed on rotary head )
Capacity
Heavy steel pipe . . . . . . . . . . . . 2.375″ X .218″, 2″ x .300 MS>
SS tubing . . . . . . . . . . . . . . . . . 2-1/2″ X .122″
Al and Cu. to 25,000 LBS . . . . . . 4″ X .083″
Ductile metal . . . . . . . . . . . . . . 25 – 40,000 Lbs. 3″ X .072″
Max. Radius. . . . . . . . . . . . . . . 18″
Machine dimensions:
Length: 17’ 4- 5/8” (5.30 m)
Width: 5’ 6-7/8” (1.70 m)
Height: 4’ 7” (1.40 m)
Weight: 5250 lb. (2299 kg
Normal wear from use. but could use some paint
Great opportunity to get a great American well known brand bender!
(Discount up to ? ! Depends on your pitch to us.😉 😉
Call for our expertise and free advice on bending)
It’s toll free: 888-459-4025 or mobile, 514-867-3131
Sold, warranted against latent defects AND free LOADING on the least expensive transport on truck at your door
We’ll also do SHIPPING logistics for free to get you a great freight rate.
Specs
Normal wear from use. Will need some work to make it A1again.
Great opportunity to get a great machine for UNDER 10k!
Sold as is, FREE LOADING on your vehicle. Best logistics to get it to you but warranted against all latent defects.
Full specifications below.
(Discount: Call for a discount, of the day, depends on YOU.
AND our expertise and free advice on bending)
It’s toll free: 888-459-4025 or mobile, 514-867-3131
2″ Hydraulic Bender, Rotary , pipe and tube, Wallace Model 500 2½ quantity
