USED Pfaudler 200 Gal Pfaudler Reactor Body, 100/80#

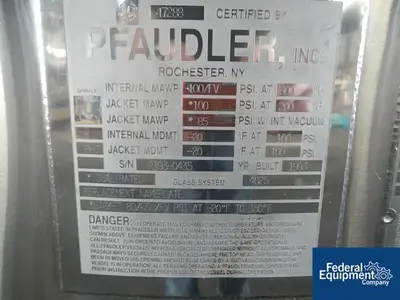

Used 200 gallon Pfaudler glass-lined reactor body, RX series, approximately 39" diameter x 33" straight side x 14" deep cone bottom, rated 100 psi and full vacuum at 300 f, dual rated jacket for 100 psi at 200 f or 80 psi at 350 f, 4025 glass, 3" bottom outlet, stainless steel skin over jacket on 3 stainless steel legs, serial# R193-04385, reglassed in 2006 serial# J066527, national board# 47288, Built 1993.

Year of Construction: 1993
Material of Construction: Glass Lined
Capacity (Gallons): 200
Serial Number: R193-0435
Jacket Pressure: 100
Jacketed: True
National Board Number: 47288
Vacuum Rated: True
Internal Pressure (PSI): 100
