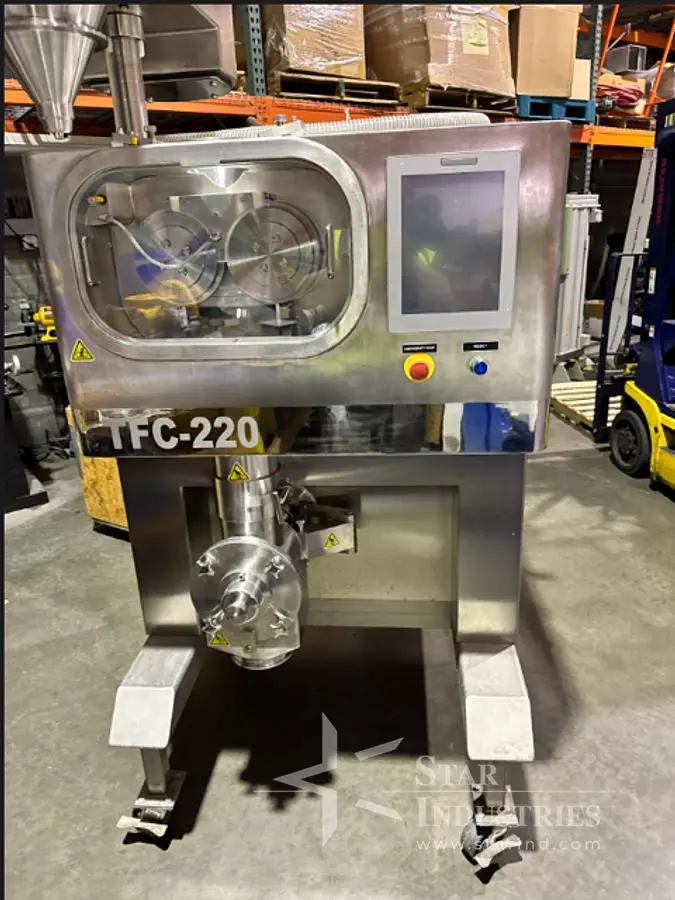

USED FREUND VECTOR TFC-220
Overview
The Freund-Vector TFC-220 Roll Compactor is a versatile densification and dry granulation machine that produces uniform compacted sheets with consistent hardness and increased density by compacting powdered material between two uniquely designed rolls.
"S" roll design features flat face with serrations Size : 200mm Dia x 31mm W(8" D x 1.22" W)
Variable Speed : 1 to 17 rpm
AC drive : 1 HP, 0.75 kW AC
The TFC Roll Compactor utilizes a cantilevered roll design and features a vertical tapered feed screw system and the DP/DPS compaction rolls.
Simple-to-use, easy to clean, economical, and designed for maximum processing effectiveness, the TFC Roll Compactor is the ideal solution for dry compaction processing requirements.
Base Unit Dimensions : 37.25" W x 58.75" D x 73.125" H
Weight : 1800 lbs
Electrical : 1.4 KW @ 230-500 V., 50/60 Hz, 3 Phase
Specs
Base Unit: 304 Stainless Steel
Maximum Rated Capacity: 20 kg/hr
Maximum Compacting Force: 50Kn, 5.6 Tons (5,140 Kgs)
Hopper Volume: 3L (0.106cu.ft)
Screw Motor: Variable Speed 4 to 43 rpm
AC Drive: 0.75 HP, 0.6 KW
