USED 2008 SUPERTEC Planotec-2060NC

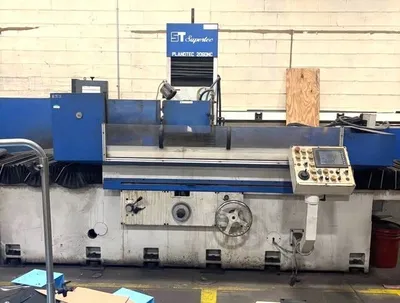

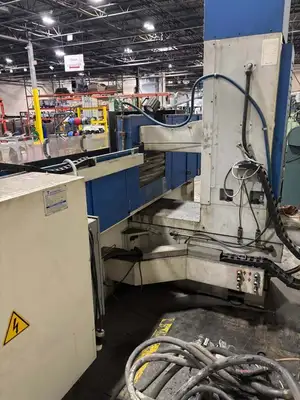

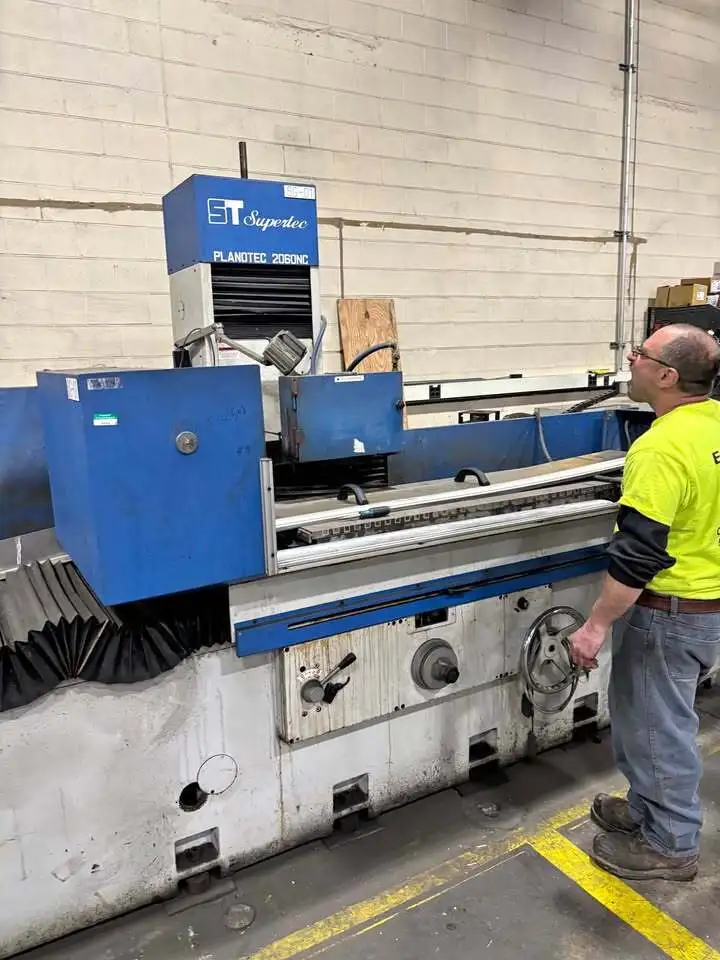

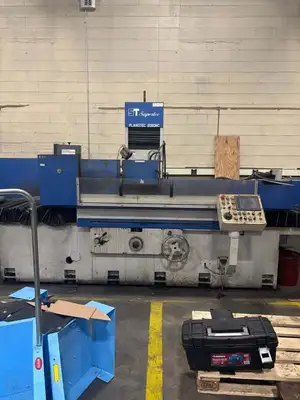

Supertec Planotec-2060NC 20" x 60" Hydraulic Surface Grinder (2008)

General Capacity
Table Size: 20" x 60" (500 mm x 1500 mm)
Maximum Grinding Width: 20"
Maximum Grinding Length: 60"
Spindle Center to Table Distance: 24" maximum
Grinding Wheel Diameter: 14" standard
Axis Movements & Feed Rates
Longitudinal Travel (X-Axis): Driven by a hydraulic cylinder operating on double-V hand-scraped ways.
Hydraulic Traverse:
63"Maximum Manual Travel:
65"Cross Travel (Z-Axis):
Precision ballscrew and AC servo motor drive.
Vertical Downfeed (Y-Axis): Driven by an AC servo motor and precision ballscrew from the column top.
Automatic Infeed Range: 0.00004" to 0.002"

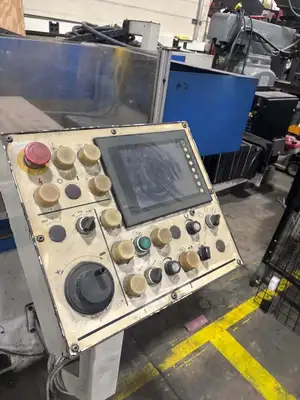

MPG Handwheel per Revolution: 0.004" / 0.04" / 0.4"
MPG Handwheel per Graduation: 0.00004" / 0.004" / 0.04"
Construction Features
Spindle Design: High-rigidity cartridge style featuring class 7 angular contact ball bearings packed with grease.
Slideways: Turcite-coated, hand-scraped double-vee table ways to minimize friction and resist deflection under heavy loads.
Thermal Control: Features an external hydraulic power pack with an integrated cooling fan unit to eliminate heat transfer to the main casting.
