USED PACIFIC 750-R20
Overview

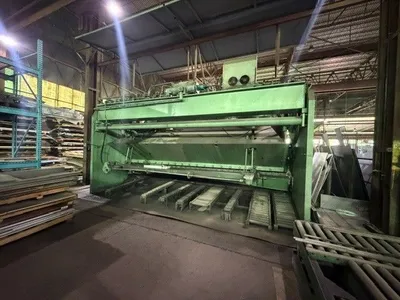

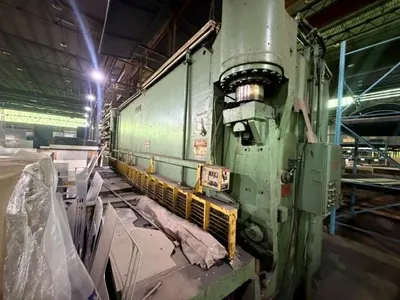

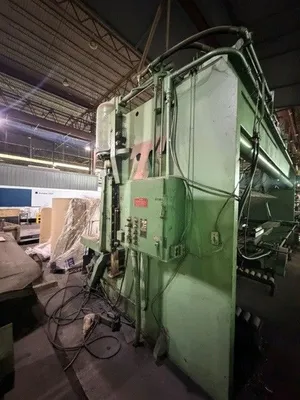

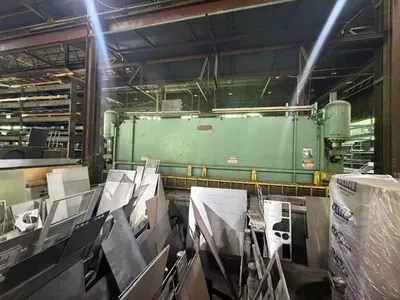

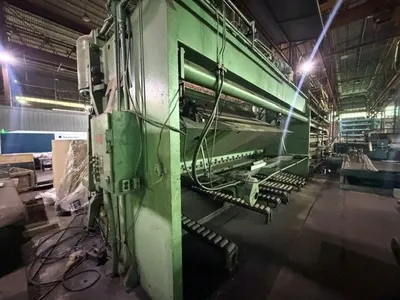

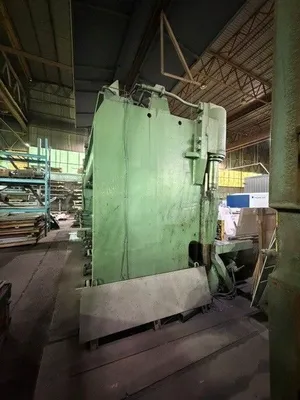

Pacific Model 750 R20 3/4" x 20' Hydraulic Power Shear
Specs
Pacific Model 750 R20 3/4" x 20' Hydraulic Power Shear
Model Series: Pacific R-Series (Hydraulic Plate Shear)
Nominal Capacity: 3/4" (0.750 inches) mild steel
Max Cutting Length: 20 feet (240 inches)
Maximum Rake Angle: Up to \(\frac{3}{4}\)" per foot
Hold Downs: Usually equipped with approximately 14-20 hydraulic hold-down cylinders
Back Gauge: Typically features a front-operated power backgauge
Main Motor Power: 40 HP depending on the specific hydraulic pump configuration
Machine Weight: 100,000 lbs
Power Type: Hydraulic
Equipped With
Adjustable Stroke Length: Features variable stroke control to shorten cycle times when cutting pieces narrower than 20 feet.
Blade Gap Adjustment: Manual or powered knife-gap adjustment to accommodate thin sheets up to full 3/4" plate.
Blade Opening: Typically allows up to 1-1/2" maximum opening
