USED KOMAR INDUSTRIES INC ES-1220

- Manufacturer: Komar Industries, Inc.
- Model: ES-12-20
- Type: Dual-Shaft Rotary Shear Shredder

- Cutting Chamber: 12" x 20"
- Feed Opening: Approx. 24" x 32" (Hopper Dependent)
- Throughput Capacity: 0.5 - 1.5 Tons/Hour

- Materials Processed: E-Scrap, Hard Drives, Circuit Boards, Plastics, Purges, Medical Waste, Light Aluminum, Non-Ferrous Scrap, Document & Product Destruction

- Main Motor: 15 - 20 HP
- Drive Type: Electro-Mechanical
- Electrical Requirements: 460V, 3-Phase, 60 Hz
- Gearboxes: Heavy-Duty Planetary Gear Reducers
- Overload Protection: Fluid Coupling / Current-Limiting Protection

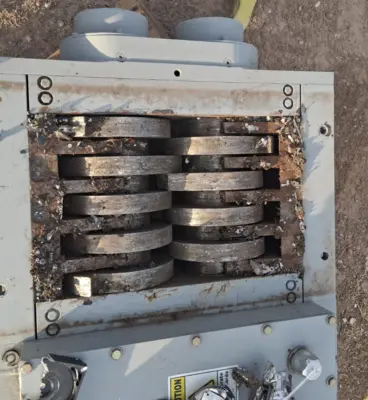

- Shaft Configuration: Dual Counter-Rotating Alloy Steel Shafts
- Knife Design: Interlocking Hooked Knife Discs
- Knife Thickness: 1/2" - 1"
- Knife Material: Hardened Heat-Treated Alloy Steel
- Shaft Speed: 15 - 25 RPM

- Overall Length: Approx. 72"
- Overall Width: Approx. 36"
- Overall Height: Approx. 48"
- Machine Weight: Approx. 2,800 - 3,500 lbs

- Control Panel: NEMA 12 Enclosure
- Controls: PLC-Based System
- Jam Protection: Automatic Reverse
- Safety Features: Emergency Stop & Hopper Safety Interlocks
