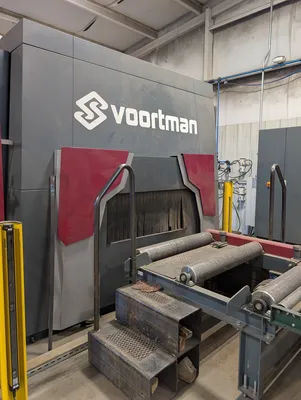

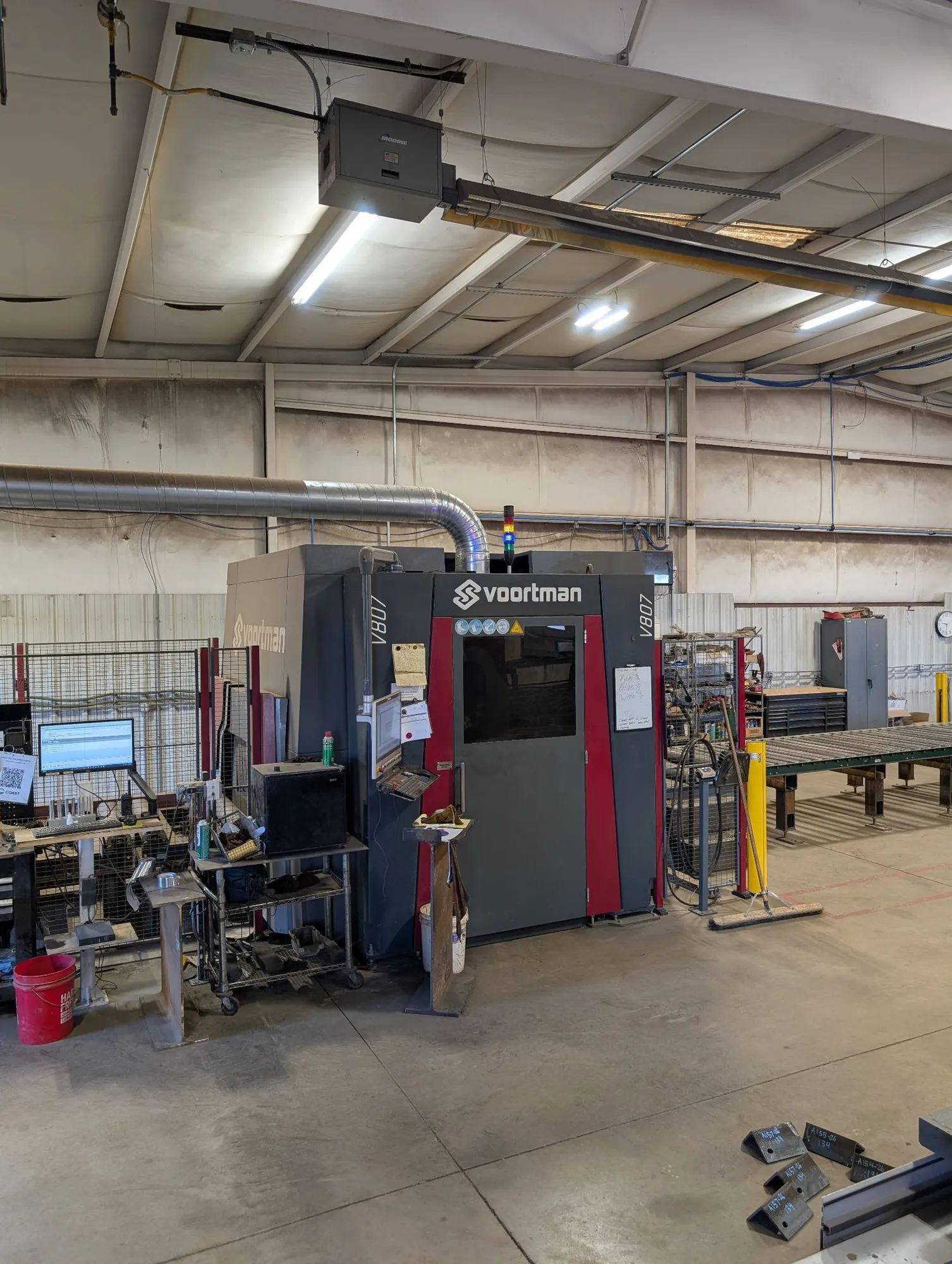

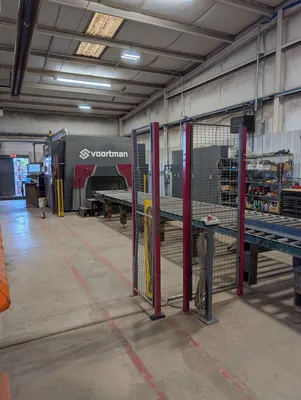

USED 2023 VOORTMAN V807
Overview
Description
Available Immediately. Please note: sold “as-is, where-is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs
Specifications
| Max Profile Width | 42" | 1,066.8 mm |
|---|---|---|
| Minimum Profile Width | 2" | 50.8 mm |
| Max Profile Height | 18" | 457.2 mm |
| Minimum Profile Height | 38" | 965.2 mm |
| Layout Marking | Yes | Yes |
| Power Source | Hypertherm XPR300 Core | Hypertherm XPR300 Core |
| Amps | 300 | 300 |
| Bevel | Yes | Yes |
| In-feed Conveyors | 40' | 12,192 mm |
| In-feed Transfers | 16' | 4,876.8 mm |
| Out-Feed Conveyors | 40' | 12,192 mm |
| Out-Feed Transfers | 16' | 4,876.8 mm |

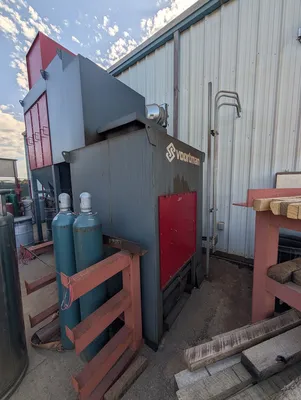

| Dust Collector | Donaldson Torit DFPRE 4 - 50L | Donaldson Torit DFPRE 4 - 50L |
| Positioning Weight | 33,000 lb | 14,968.6 kg |
| Control | CNC (VACAM Control) | CNC (VACAM Control) |
| Weight | 18,700 lbs | 18,700 lbs |
Installed February 2024
The robot arm was replaced in 2025
Machine running hours:16,716
Production Time: 3,034
Machine Performance:
Max positioning speed (feeder rolls): 197 ft/min
Max robot air speed: 0.45 in/sec

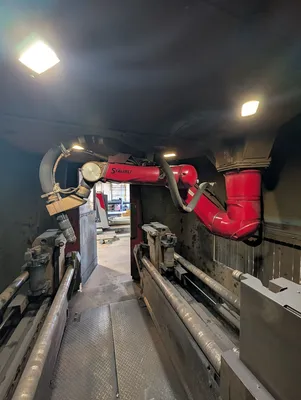

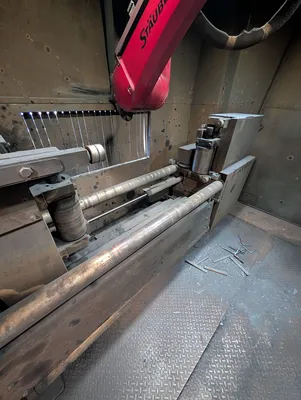

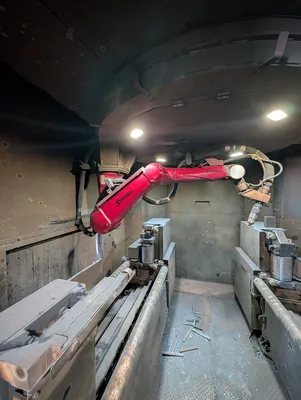

Robot type: 7-axis system including a calibrated Stäubli robot
Axes: 6 + 1 (full 4‑side processing)

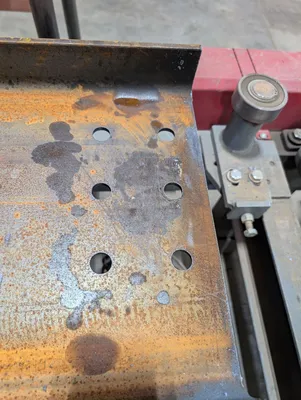

Cutting Capabilities:
Bevel angle: up to 50°
Minimum cutting thickness: 1/8"
Maximum cutting thickness (plasma): 3‑1/8"
Maximum cutting thickness (oxy‑fuel): 4‑5/16"
Maximum pierce capacity (plasma): 1‑3/4"
Maximum pierce capacity with Argon‑assist (CorePlus): 2"
Equipped With
Hypertherm XPR300 Core

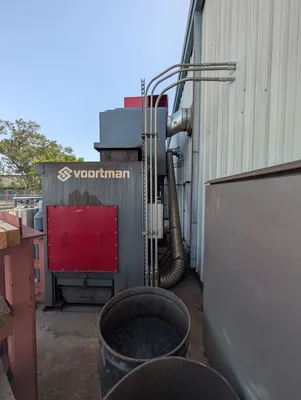

Donaldson Torit DFPRE 4 - 50L

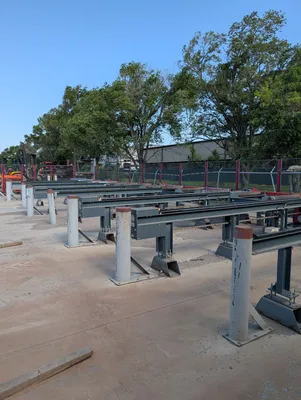

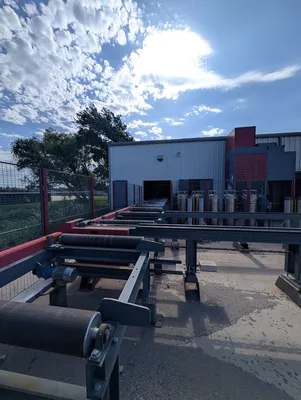

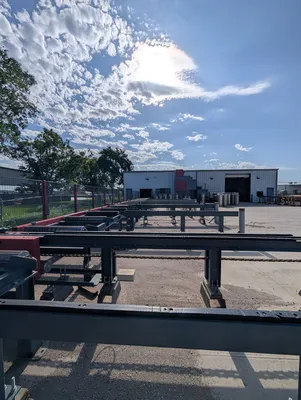

40' infeed and outfeed conveyors

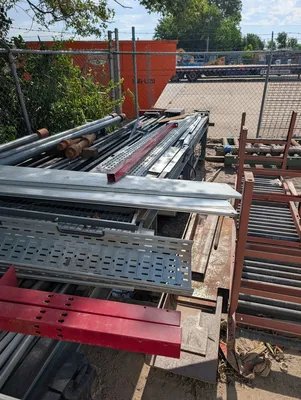

8 cross transfers, 8 sliders
