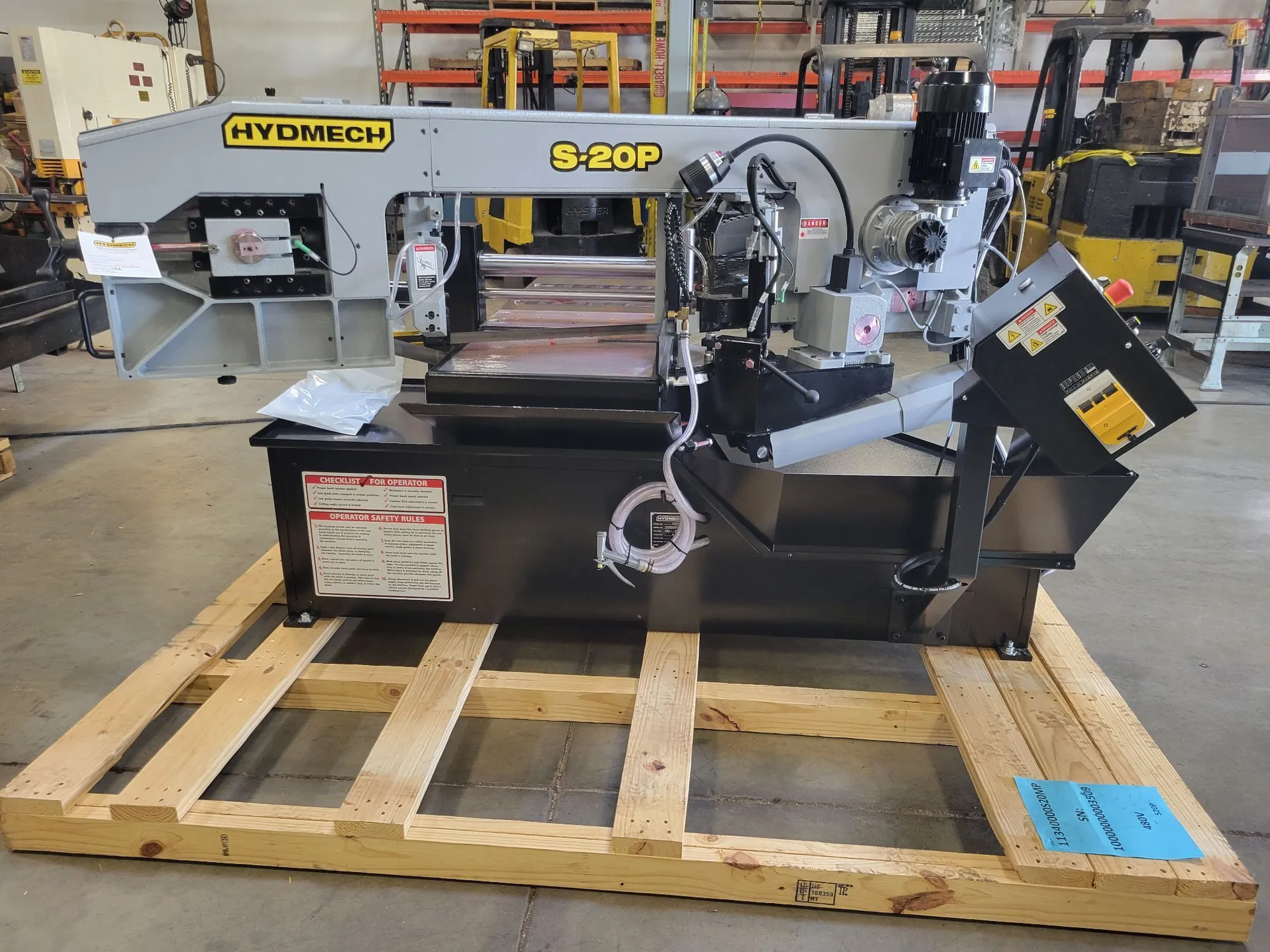

NEW 2026 HYD-MECH S-20P

Technical Specifications

Capacity Rectangular (h x w) Round
90° 13” x 18” 13”
45° 13” x 10 3/4” 12”
30° 13” x 7 3/4” 8 1/2”

Blade Size 1” x 14’ 10” Work Load 5,000 lbs.
Blade Drive 3 HP VFD Machine Weight 2,500 lbs.
Machine Voltage 480 v Table Height 31”
Blade Speed 45-330 SFM Dimensions (w x l x h) 92” x 75” x 52”
Coolant Tank Capacity 6 Gallons

Standard Machine Features

• Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
• Full capacity, full stroking hydraulic vise
• 3 HP VFD. True direct blade drive – no belts/pulleys
• On-demand hydraulics save energy
• 36” material in-feed roller table and 19” out feed table
• Cast iron band wheels • Swing away semi-automatic operator control panel
• Replaceable blade brush
• Robust steel base
• Easy to read angle scale with angle locking mechanism
• Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
• Gravity fed sawing head with infinite down feed adjustment • Mechanical band tensioning with digital readout
• Preset replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure

Optional Machine Features

• Full capacity hydraulic overhead bundling
• Idler conveyors • Work stop – 34”
• Single phase – 220 v -VFD
• Left hand side control panel • Mist lubrication
• Remote operator console
