USED MARVEL 8
Overview
Description
18” X 18” MARVEL ARMSTRONG BLUM “8" TILTING-HEAD VERTICAL BAND SAW - Manual Vise - 45-Degree Tilt - 200 FPM
Specifications
| Throat | 18" | 457.2 mm |
|---|---|---|
| Work Height | 18" | 457.2 mm |
| Power | 1 hp | 0.7 kW |
| Blade Width | 0.75" | 19.05 mm |
| Blade Length | 176" | 4,470.4 mm |
| FPM | 200 | 200 |
| Dimensions | 47” x 78” x 84”H | 47” x 78” x 84”H |
| Weight | 2500 LBS | 2500 LBS |

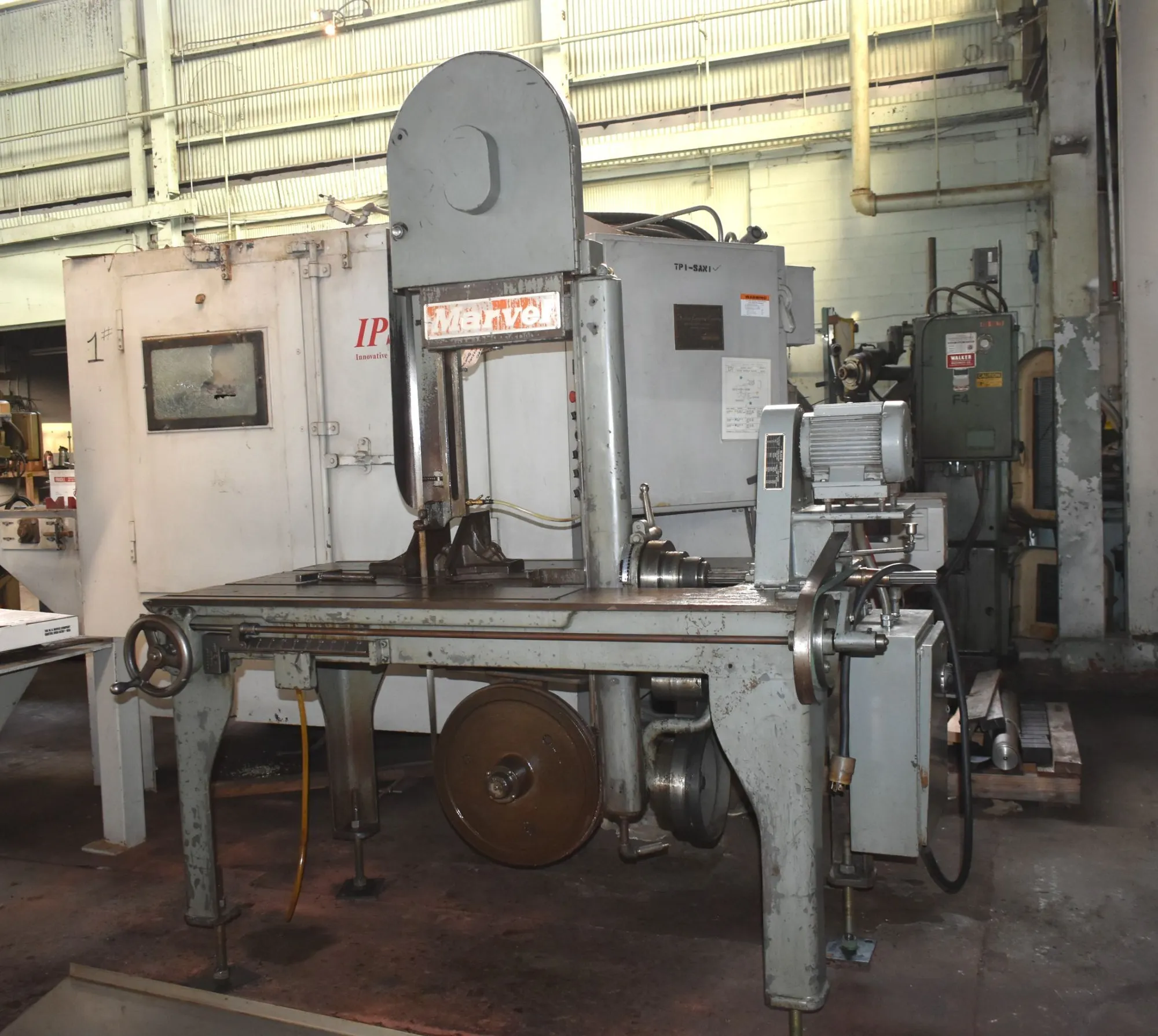

18" x 18" MARVEL ARMSTRONG BLUM TILTING-HEAD VERTICAL BAND SAW
Serial No 810893, Model 8, Series 8
EQUIPPED WITH:
Tilting-Head Design
Manual Vise
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 18" x 18"
Work Capacity, Maximum 23" x 18.75"
Work Capacity, 45-Degree Blade Angle 15.5" x 18.75"
Table Working Surface, W x L 32.75" x 25.5"
Table Tilt, Left 45-DEGREES
Table Tilt, Right 45-DEGREES
Blade Length 14'8"
Blade Width 0.75"
Blade Thickness .032"
Blade Speeds, Range 58 to 200 FPM
Main Motor, Horsepower/RPM 1 HP/1720 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 3'11" x 6'7"
Overall Height 7'
Weight, Approximately 2425 LBS
F.O.B. OUR WAREHOUSE
